The application of profilometers in bearing measurement plays a critical role in ensuring precision, surface quality, and operational longevity of bearings. Below is a structured breakdown of its key applications:

 1. Surface Roughness Measurement

Purpose: Assess micro-level surface irregularities affecting friction and wear.

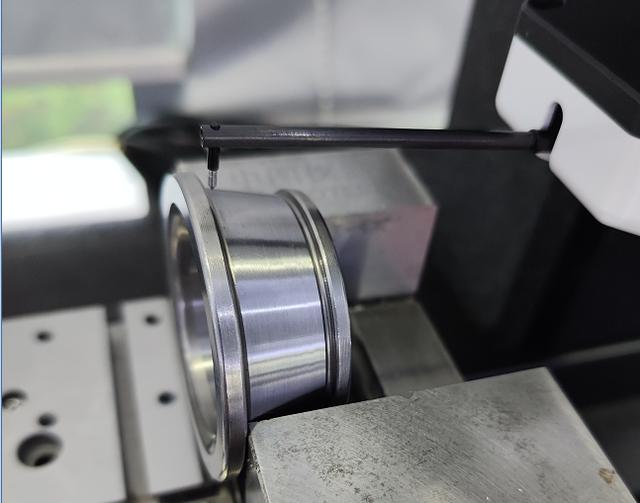

Profilometer Type: Contact (stylus) or Optical (laser/white light interferometry).

Parameters Measured:

  Ra (Average Roughness)

  Rz (Mean Peak-to-Valley Height)

  Rq (Root-Mean-Square Roughness)

Impact: Smoother surfaces (low Ra) reduce friction, improving efficiency and lifespan.

 2. Waviness Analysis

Purpose: Detect meso-scale imperfections caused by machining errors or vibrations.

Measurement:

  Wa (Waviness Average)

  Wt (Total Waviness Height)

Significance: Excessive waviness leads to noise, vibration, and premature failure.

 3. Form Error Detection

Purpose: Identify macro-scale deviations from ideal geometry (e.g., roundness, cylindricity).

Profilometer Application:

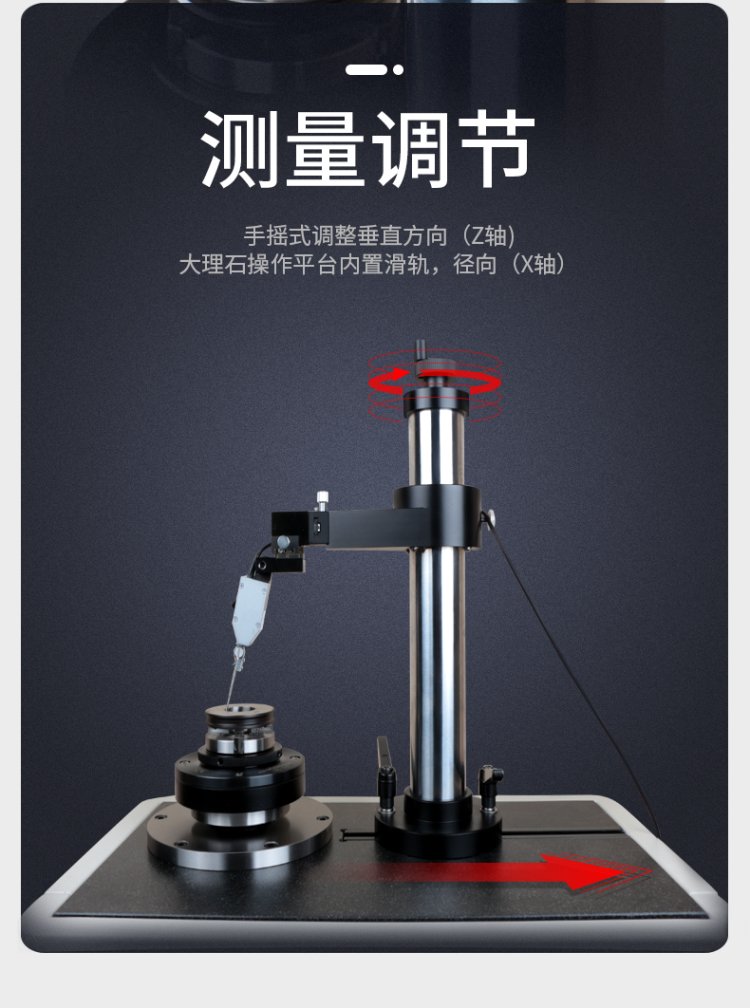

  Roundness Profilometry: Evaluate out-of-roundness in bearing races.

  Cylindricity Scans: Check roller/raceway alignment.

Standard Compliance: Ensures adherence to ISO 12181 (Roundness) and ISO 12781 (Flatness).

 4. Coating Thickness & Uniformity

Purpose: Validate protective coatings (e.g., TiN, DLC) on bearing surfaces.

Techniques:

  Contact Profilometry: Measures step heights at coating edges.

  Optical Profilometry: Non-destructive 3D mapping of coated layers.

Critical Tolerance: Coating uniformity affects corrosion resistance and load capacity.

 5. Wear & Damage Analysis

Purpose: Quantify pitting, spalling, or scratches post-operation.

Method:

  3D Topography: Compare pre- and post-operation surface profiles.

  Cross-Sectional Depth Analysis: Measure wear scar dimensions.

Outcome: Predicts remaining service life and failure modes.

 6. Lubricant Retention Assessment

Purpose: Evaluate surface textures optimized for lubricant film retention.

Profilometry Role:

  Oil Groove Profiling: Verify depth/width of lubricant channels.

  Surface Skewness (Rsk): Negative Rsk indicates better oil retention.

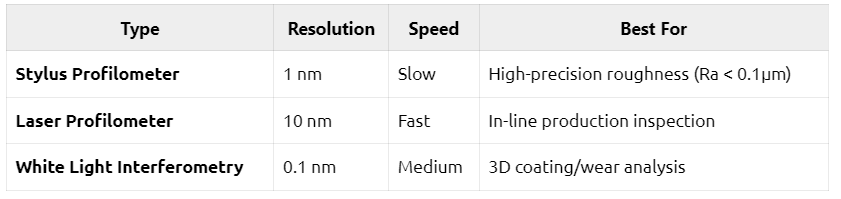

Profilometer Selection Guide

 Standards & References

ISO 4287: Surface roughness parameters.

ISO 13565-2: Profile characterization of stratified surfaces.

ASTM B46.1: Standard for surface texture measurement.

Profilometers provide quantifiable, high-resolution data critical for bearing quality control, from nano-scale roughness to macro-scale form errors. Combining contact and optical methods ensures comprehensive evaluation across manufacturing and maintenance stages. For R&D, 3D profilometry is indispensable for advancing bearing materials and designs.
