The principle and specific application of ultrasonic flaw detector

       Ultrasonic flaw detector is a nondestructive testing (NDT) tool used to detect and characterize defects inside materials or components. It works by emitting highfrequency sound waves (ultrasonic waves) and analyzing the echoes that bounce back from any irregularities within the material. Here’s a detailed description of its principle and specific applications:

 1. Working Principle of Ultrasonic Flaw Detector

 a. Generation and Transmission of Ultrasonic Waves:

1). Transducer:

    An ultrasonic transducer (probe) generates ultrasonic waves using piezoelectric crystals. These crystals change shape when an electric voltage is applied, producing sound waves.

    Conversely, they generate an electric voltage when subjected to mechanical vibrations, allowing the detection of echoes.

2). Wave Propagation:

    The transducer generates a burst of highfrequency ultrasonic waves (typically between 2 MHz and 5 MHz) that propagate through the material to be tested.

    The wave speed and frequency are chosen based on the material properties and the depth and nature of the potential defects.

 b. Detection of Echoes:

3). Reception of Echoes:

    As the ultrasonic waves encounter any internal defects, inhomogeneities, or boundaries within the material, they are reflected back to the transducer.

    The received echoes are converted into electrical signals by the transducer.

4). Data Analysis:

    The electrical signals are amplified and processed by the flaw detector to determine the location, size, and type of defects.

    The instrument typically displays these results in the form of a Bscan (Ascan with depth information) or Cscan (crosssectional views).

 c. Display and Interpretation:

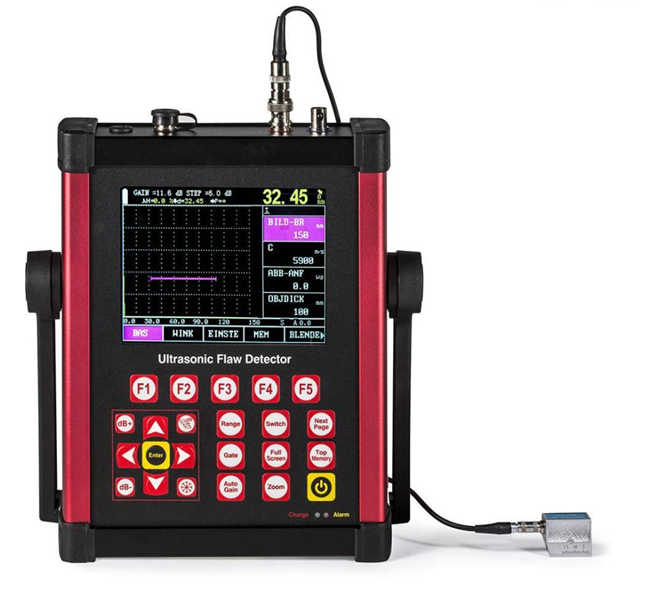

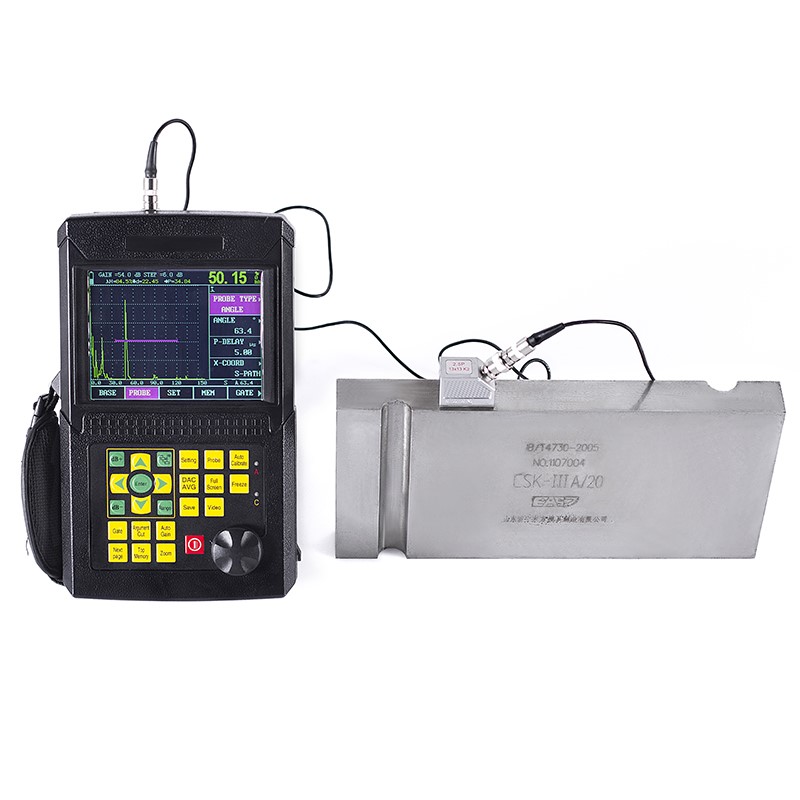

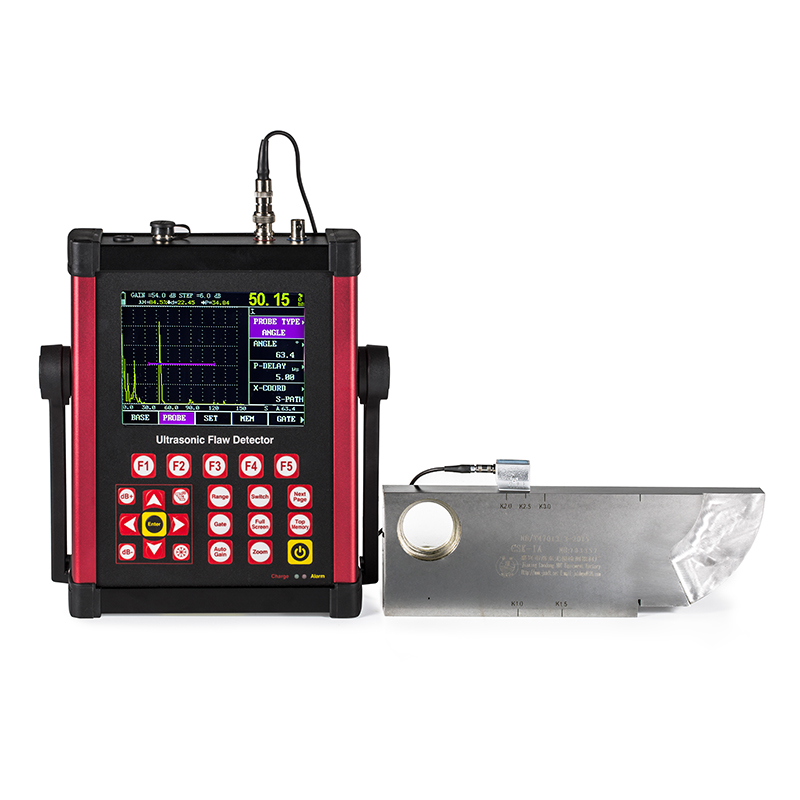

5). Screen Display:

    The flaw detector displays the echoes in a graphical format, showing the depth and position of defects.

    Common display modes include amplitudeversustime (Ascan), which shows the raw echo data, and amplitudeversusdepth (Bscan), which shows crosssectional views.

 2. Specific Applications of Ultrasonic Flaw Detectors

 a. Weld Inspection:

 Application: Used to detect defects in welds, such as porosity, cracks, and incomplete fusion.

 Example: Inspection of steel welds in vessels, pressure vessels, and structural components.

 b. Pipeline Inspection:

 Application: Identifies wall thickness reductions, internal corrosion, and other imperfections in pipelines.

 Example: Detecting corrosion beneath the protective coatings of pipelines carrying oil, gas, or other fluids.

 c. Aerospace Components:

 Application: Inspects critical parts like turbine blades, plates, and forgings for defects.

 Example: Checking for cracks, voids, and other flaws in engine components to ensure airworthiness.

 d. Automotive Components:

 Application: Inspects parts such as gears, shafts, and bearings for hidden defects.

 Example: Verifying the integrity of engine components and transmission parts.

 e. Rail Inspection:

 Application: Detects flaws in rail tracks and rails.

 Example: Inspecting for cracks, peeling, and other issues that could affect the safety and reliability of railway systems.

 f. Structural Health Monitoring:

 Application: Monitors the structural integrity of bridges, buildings, and other large structures.

 Example: Tracking the progression of corrosion or other damage over time.

 3. Key Components of an Ultrasonic Flaw Detector

 Transducers: Piezoelectric crystals responsible for generating and receiving ultrasonic waves.

 Signal Processor: Amplifies and processes the ultrasonic signals to extract useful information.

 Display Unit: Shows the results in intelligible graphical or numerical form.

 Control Unit: Allows operators to input parameters and configure the instrument.

 Storage: Saves test results for recordkeeping and analysis.

 4. Types of Ultrasonic Flaw Detectors

 Contact Scanners: Use a scanning probe that is physically in contact with the surface of the material.

 LiquidCoupled Scanners: Use a coupling liquid (like water) to transmit sound waves between probe and material.

 Automated Systems: Combine ultrasonic technology with robotic or automated movement for highspeed, highprecision inspections.

 Conclusion

Ultrasonic flaw detectors are essential tools in ensuring the safety and integrity of critical components in various industries. They provide a noninvasive way to detect and characterize defects, ensuring that parts and structures meet the necessary quality standards. Understanding their principle and specific applications can help in selecting the appropriate instrument for different inspection needs.

If you have any specific questions or need more details on a particular application, feel free to ask!
