Introduction to Cylindricity Measuring Instrument

A Cylindricity Measuring Instrument is a precision metrology device used to measure the cylindricity (geometric form deviation) of cylindrical components, ensuring they meet strict tolerances required in industries such as aerospace, automotive, medical devices, and machining.

  Key Features & Functions

1️ Definition of Cylindricity

Cylindricity is a 3D form tolerance that evaluates how closely a cylindrical surface conforms to a perfect cylinder. It checks:

- Roundness at multiple cross-sections

- Straightness along the axis

- Taper deviations

2️Measurement Methods

Depending on the instrument type, cylindricity can be measured via:

- Rotary Table Method: The part rotates while a probe detects radial deviations.

- V-Block & Dial Gauge: Manual method (less precise).

- Coordinate Measuring Machine (CMM): Uses tactile or optical probes for 3D scanning.

- Laser Scanning/Non-Contact Sensors: High-speed optical measurement.

3️Applications

✔️ Shafts & Bearings – Ensure smooth rotation & fit.

✔️ Hydraulic Cylinders – Prevent leakage due to form defects.

✔️ Medical Implants (e.g., hip joints) – Meet biocompatibility tolerances.

✔️ Automotive Engine Parts – Crankshafts, pistons, fuel injectors.

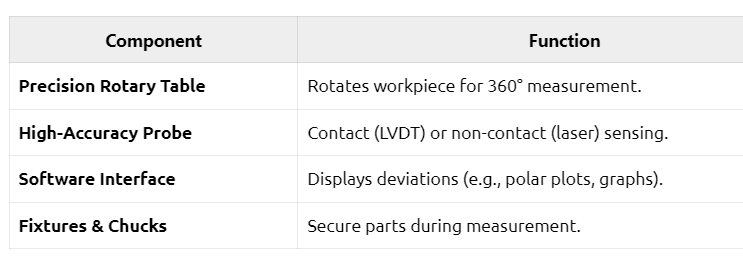

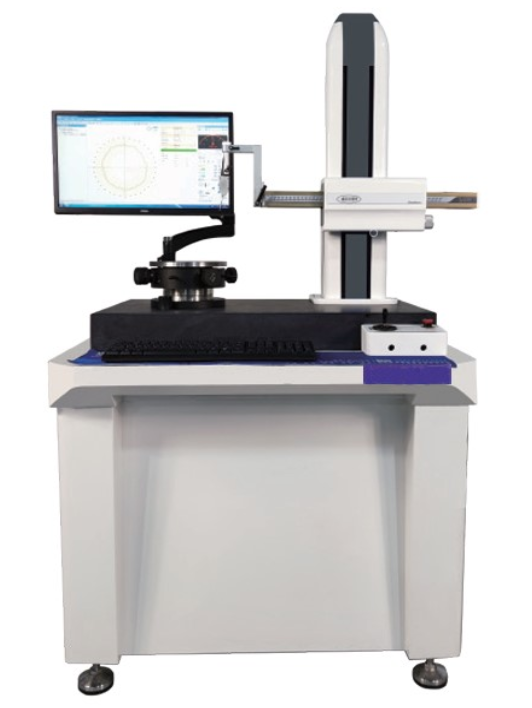

 Instrument Components

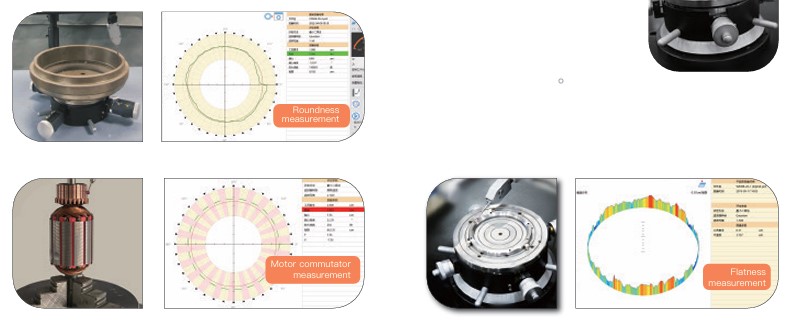

 Measurement Outputs

The instrument provides:

- Cylindricity Error (max deviation from ideal cylinder).

- Roundness Profile (per cross-section).

- Taper & Straightness Data.

- Visualization: Color-mapped 3D deviation plots.

 ⚙️ Standards & Calibration

Compliant with:

- ISO 12180 (Geometrical Product Specifications for Cylindricity)

- ASME Y14.5 (GD&T Standards)

- Traceable Calibration (NIST or PTB standards)

 ️ How to Choose  the Right Instrument

Consider:

1. Accuracy (sub-micron level needed?).

2. Part Size (small needles vs. large pipes).

3. Speed (production-line vs. lab use).

4. Contact vs. Non-Contact (delicate surfaces?).
