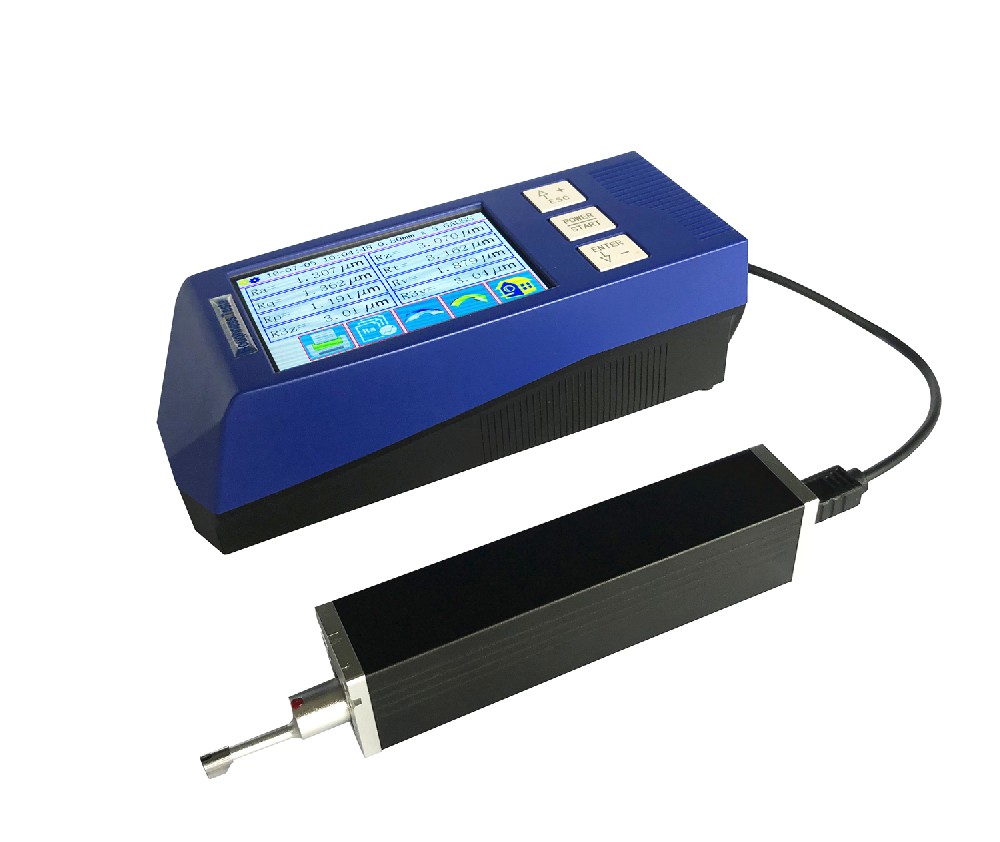

A Surface Roughness Tester (also known as a *profilometer* or *roughness gauge*) is a precision instrument that measures the microscopic texture of a material's surface, quantifying deviations from an ideal smooth plane. It is essential for quality control, R&D, and compliance in industries like manufacturing, automotive, aerospace, and medical devices.

Here’s a structured introduction to its working principles, types, applications, and key metrics:

 1. Core Principles

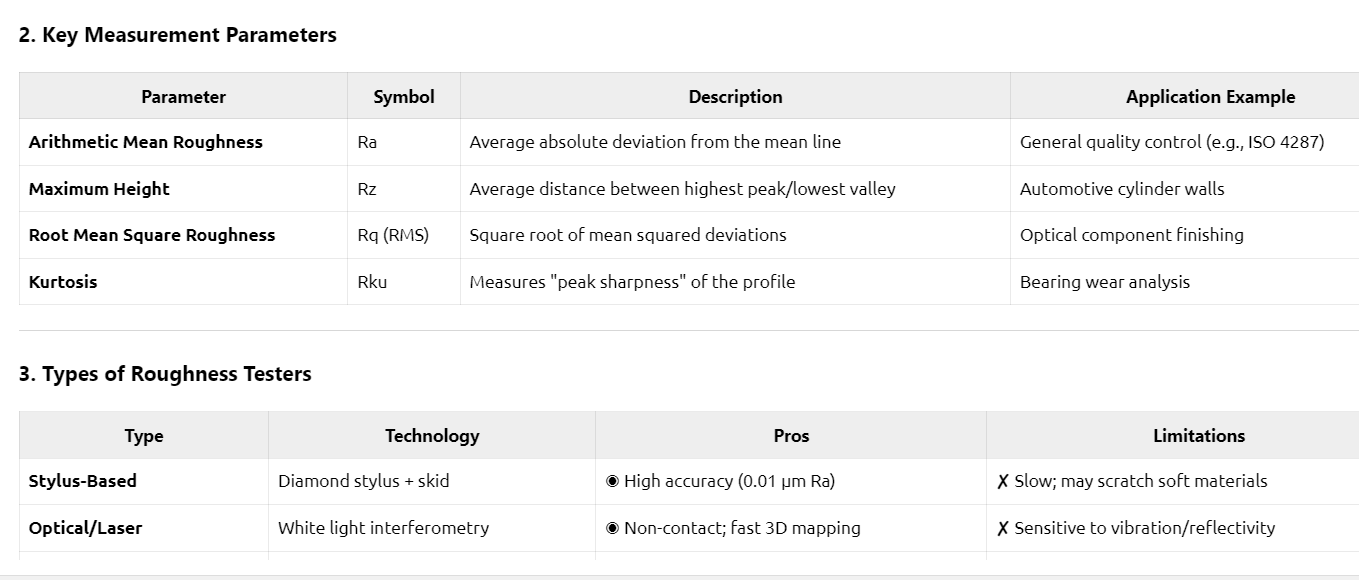

Surface roughness is measured by analyzing height variations (peaks and valleys) along a line (2D) or area (3D):

- Contact Method: A diamond-tipped stylus physically traces the surface (micrometer-scale resolution).

- Non-Contact Method: Uses optical/laser technologies (e.g., interferometry, confocal microscopy) to avoid surface damage.

- Output: Generates a roughness profile and calculates numerical parameters (e.g., *Ra*, *Rz*).

 4. Major Applications

- Manufacturing: Verify machined part finish (e.g., lathe, milling, grinding).

- Automotive: Piston rings, crankshafts, gearbox components (affects friction/wear).

- Aerospace: Turbine blade aerodynamics, fuselage sealing.

- Medical: Implant biocompatibility (e.g., hip joints), surgical tool finish.

- Electronics: Silicon wafer polishing, PCB flatness.

 5. Standards & Compliance

Testers adhere to global standards:

- ISO 4287: Definitions of roughness parameters.

- ASME B46.1: U.S. standard for surface texture.

- DIN 4768: German norms for measurement.

 6. Key Features to Consider

- Resolution: Sub-micron resolution for critical applications (e.g., 0.001 µm).

- Range: From mirror finishes (Ra < 0.05 µm) to coarse surfaces (Ra > 25 µm).

- Software: 3D visualization, statistical analysis, export to CAD/QC systems.

- Caliper Integration: Combines roughness with dimensional measurement.

 7. Practical Example

Task: Measure the Ra value of a CNC-machined aluminum alloy part.

1. Select a stylus tester with a 5 µm radius tip.

2. Traverse a 5 mm path at 0.5 mm/s.

3. Result: Ra = 1.2 ± 0.1 µm (acceptance threshold: Ra ≤ 1.5 µm).

 8. Calibration & Best Practices

- Calibrate using certified reference artifacts (e.g., ISO 5436-1).

- Avoid vibration, dust, or temperature fluctuations during measurement.

- For soft materials (e.g., polymers), use non-contact methods to prevent damage.

Surface roughness testers bridge the gap between tactile quality and quantifiable data, ensuring components meet functional requirements for friction, adhesion, sealing, or aesthetics. Choosing between contact/non-contact methods depends on material hardness, required resolution, and environmental constraints.

If you need to selecting a tester model or interpreting roughness data? Feel free to ask!
