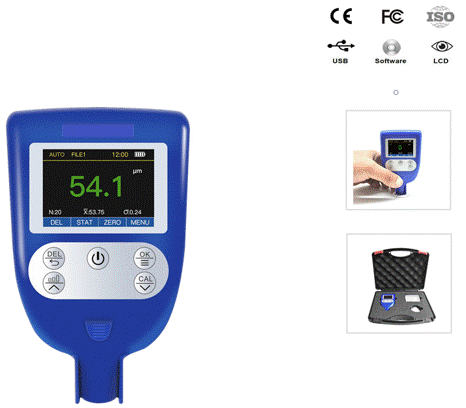

TLS Series - Coating Thickness Gauge TLS252S
1.Functions & Features
● New system with multi-function & high accuracy.
● Integrated with Fe and NFe in one probe.
● LED display. Fast test. Easy for operation.
● Automatic Statistics data: MEAN, MAX, MIN, S.DEV and Test NO.
● Data storage and delete. Memory: 500 units of data.
● Limits settings: auto alarming for the measurements out of range
● Switch off automatically or manually.
2.Measuring Materials
● Magnetic Induction (Fe): Non-magnetic coating on magnetic metal substrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel .
● Eddy Current (NFe): Non-conductive coating on non-magnetic metal substrate, such as rubber, plastic, paint, oxide on the base of aluminum, copper, zinc, tin.
3.Technical Parameters
Model No. | TLS252S |
Measuring principle | Fe & NFe |
Measuring range (µm) | 0~1500μm |
Accuracy | ±(2%H+1) μm; H refers to the thickness of testing piece |
Min thickness of Substrate (mm) | 0.5 |
Minimum resolution (µm) | 0.1μm ( 0-100μm); 1μm ( 100-1500μm) |
Min curvature of the min area (mm) | Fe: Convex1.5 Concave25 / NFe: Convex3 Concave50 |
Temperature | 0~40℃ |
Environment | No strong magnetic field |
Dimensions | 115*70*23 mm |
Net Weight | 120g |
Power supply | 2*1.5v AAA battery |

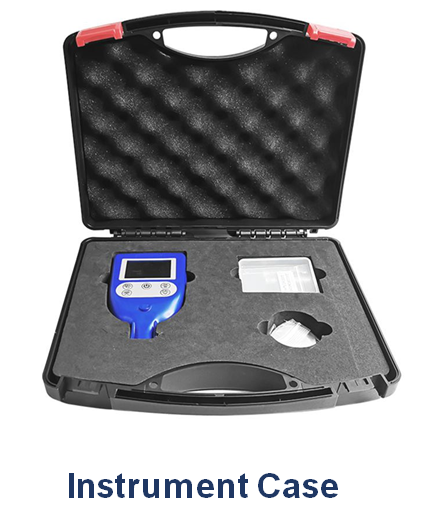

Standard Configuration | Main Machine, Calibration specimens*5, FE & NFE Substrate, Users’ Manual, Qualified Certificate, Packing list, Warranty card |

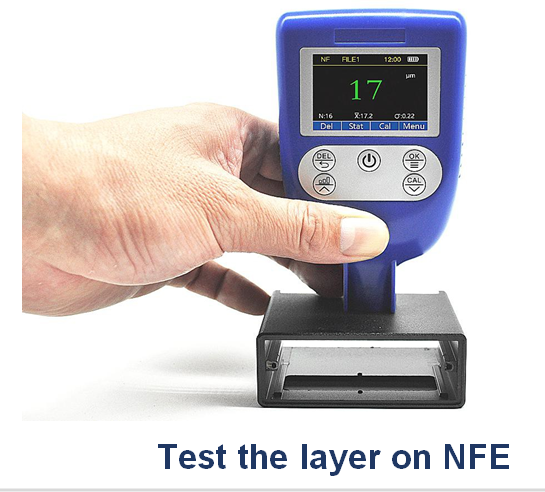

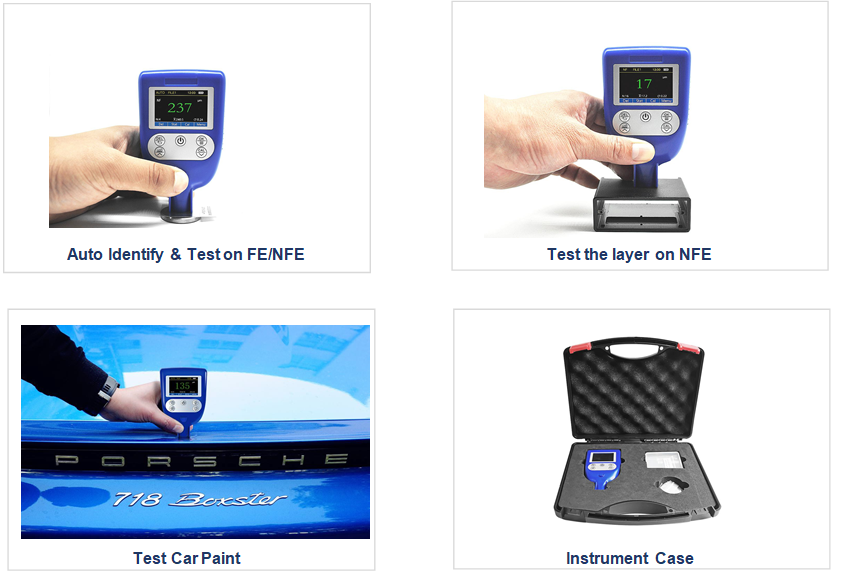

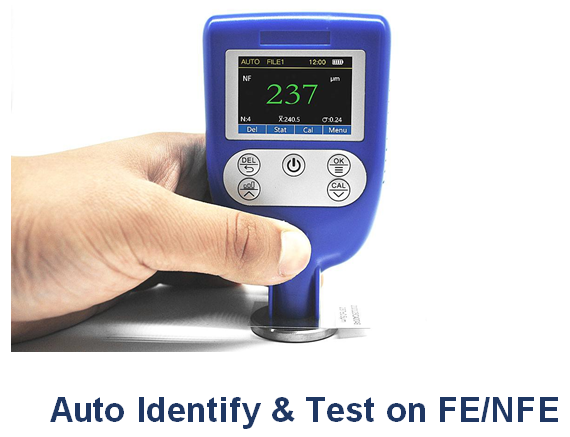

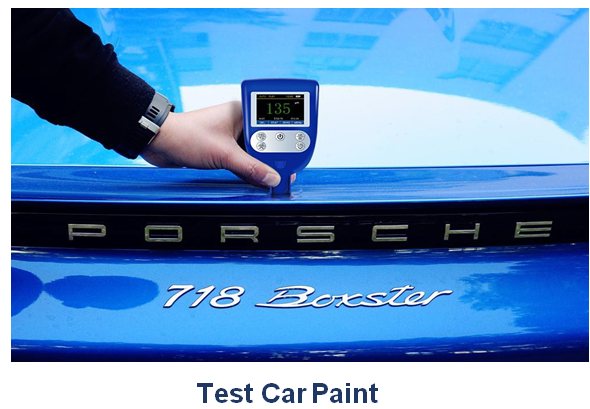

4.Application Pictures
