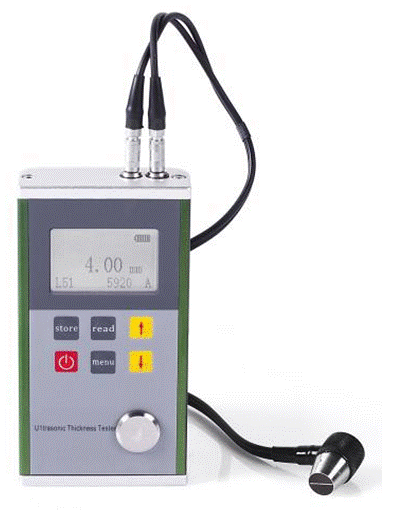

TLS Series -Ultrasonic Thickness Gauge TLS330/331/332
1.Functions & Features
High quality metal sheel.
Two display units: mm and inch. With coupling state indication.
Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.
2.Measuring Materials
Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
3.Technical Parameters
Technical Parameters | |||
Model | TLS330 | TLS331 | TLS332 |
Measuring range(mm) | 0.7~300 | ||
Resolution(mm) | 0.1 | 0.01 | |
Accuracy(mm) | ±(1%H+0.1) | ±(0.5%H+0.01) | |
Velocity range(m/s) | 5920 | 1000~9999 | |
Storage | No | 500 Groups | |
Shell | Metal | ||
Operating Temperature | (-10°C~60°C) | ||
Dampness | 20%~90% | ||
Dimensions(mm) | 130×70×250 | ||
Power supply | AAA alkaline batteries | ||
Weight (g) | 42g | ||

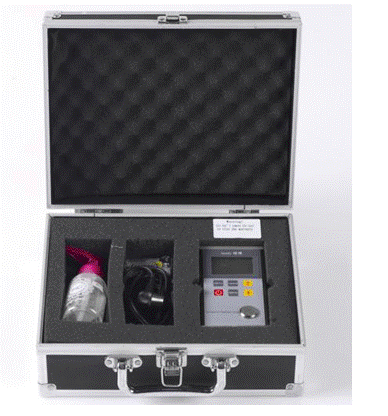

4.Standard Configuration
Name | Quantity | Name | Quantity |
Main unit | 1 | Coupling agent | 1 |
Standard probe(5P Ø10) | 1 | AAA alkaline battery | 2 |
Users’ Manual | 1 | Packing list | 1 |
Qualified Certificate | 1 | Warranty card | 1 |

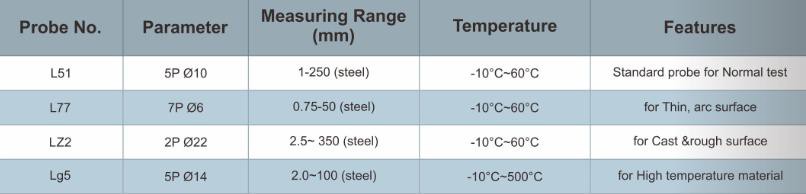

5.Probe Detailes

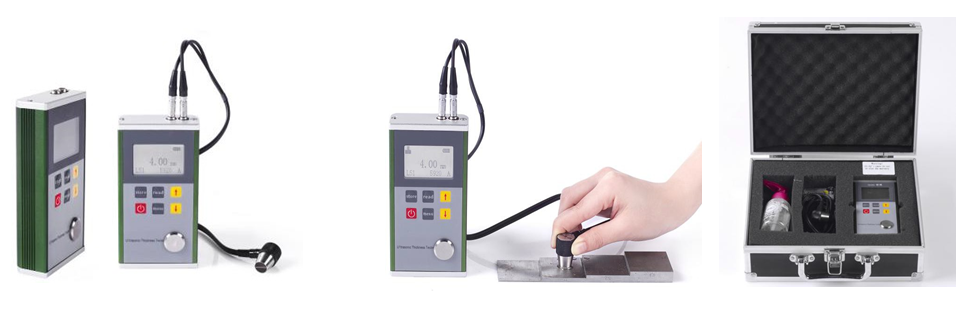

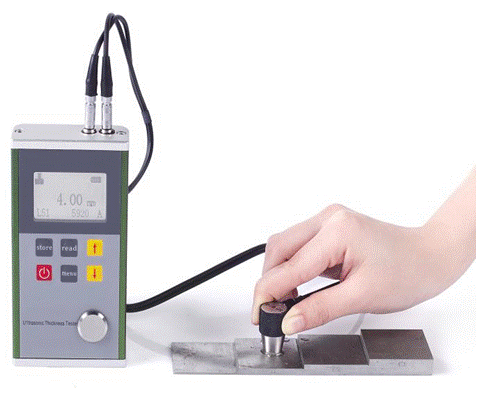

6.Pictures
