Contour & Roughness machine,Roughness profiler，Contour tester

60 mm big range sensor

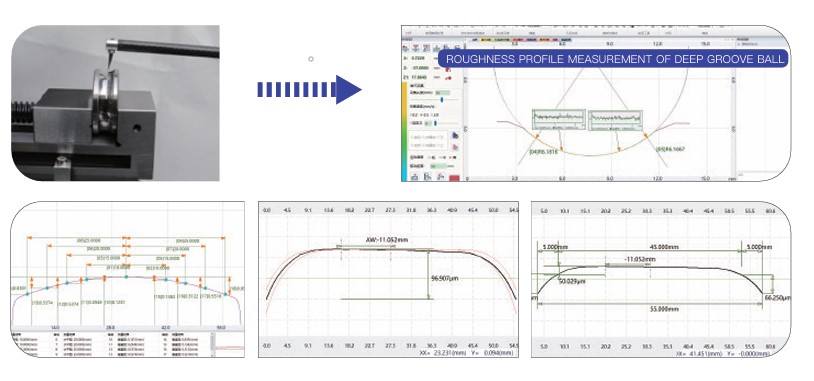

Simultaneous measurement of roughness and profile

Resolution accurate to 0.001 μm

Small force measurement and high accuracy

Minimum acquisition spacing 0.05 μm

Software automatic correction

FUNCTION

PROFILE

 Point: point, midpoint, intersection, highest point, lowest point

 Line: straight line, tangent line, vertical line, parallel line, bisector

 Circle: local circle, ellipse, tangent circle

 Angle: angle, horizontal included angle, vertical included angle, included angle, bisector included angle

 Position tolerance: straightness, convexity, arc profile, perpendicularity, parallelism

 Auxiliary: generation: including auxiliary points, auxiliary lines and auxiliary circles

ROUGHNESS

 Ra，Rq，Rz（Ry），Rz（DIN），R3z，Rz （jis），Rp，Rv，Rt，Rsk，Rsm Rc，Rpm，Rku，Rdq，Roc，Mr1，Mr2， Rpk，Rvk，Rk，Rdc，A1，A2，Rx，AR， Rcp，Rmax，Rz-ISO

RAW PROFILE

 Pt，Pa，Pp，Pv，Pq，Pc，Pku，Psk，Pdq，Psm，Pdc， Pmr，Pz，Pmr

WAVINESS

 wt，wa，wp，wv，wq，wc，wku，wsk， w，wx，wz，wsm，wdc，wte，wmr，Aw，c （wmr）wmr（c），wdq
