Aspheric measuring instrument,Profile Measurement

This product is an optical element measurement system, which has the advantages of high resolution, large measuring range, strong uphill and downhill ability, and can measure and analyze optical elements in different industries.

EVEN ASPHERIC FORMULA

Lens tilt correction, the measurement result is not affected by the lens installation tilt error; Z direc-tion optimization makes the measurement graph best fit the theoretical graph of the formula; Digitally assisted search of lens symmetry axis to improve measurement accuracy; Capable of measuring large aperture and large curvature aspheric surfaces.

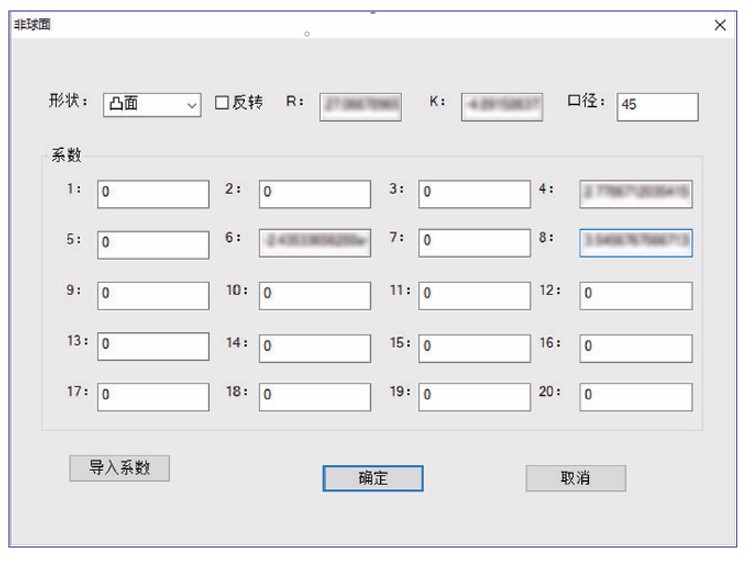

FORMULA COEFFICIENT IMPORT AND SETTING

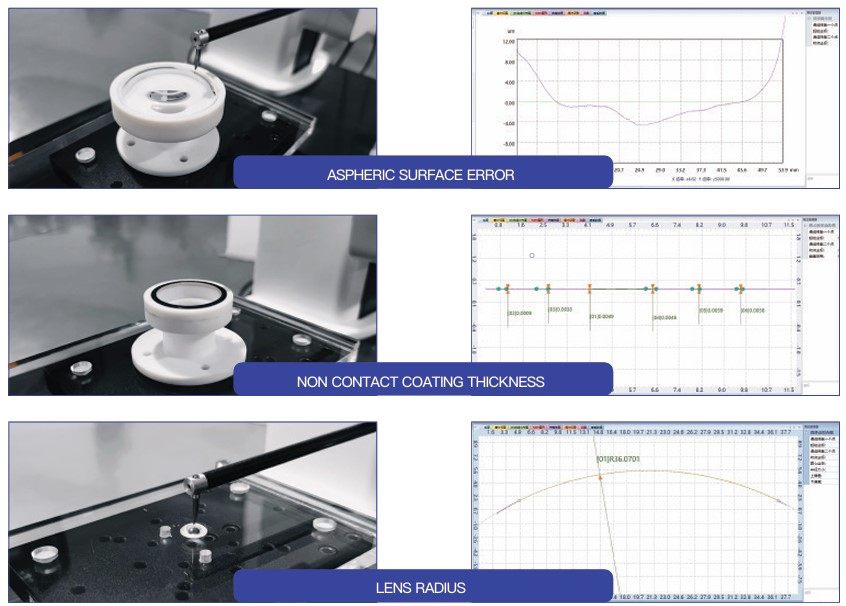

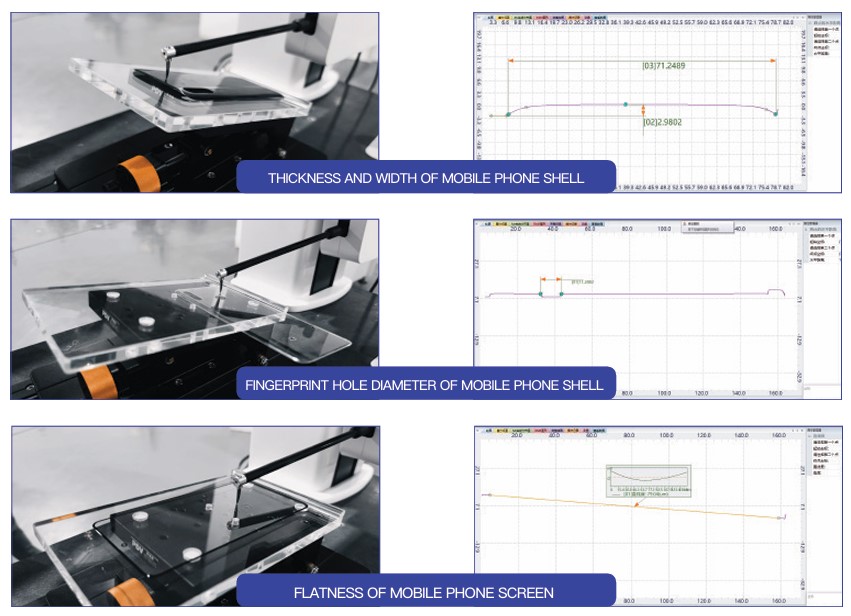

MEASUREMENT EXAMPLES

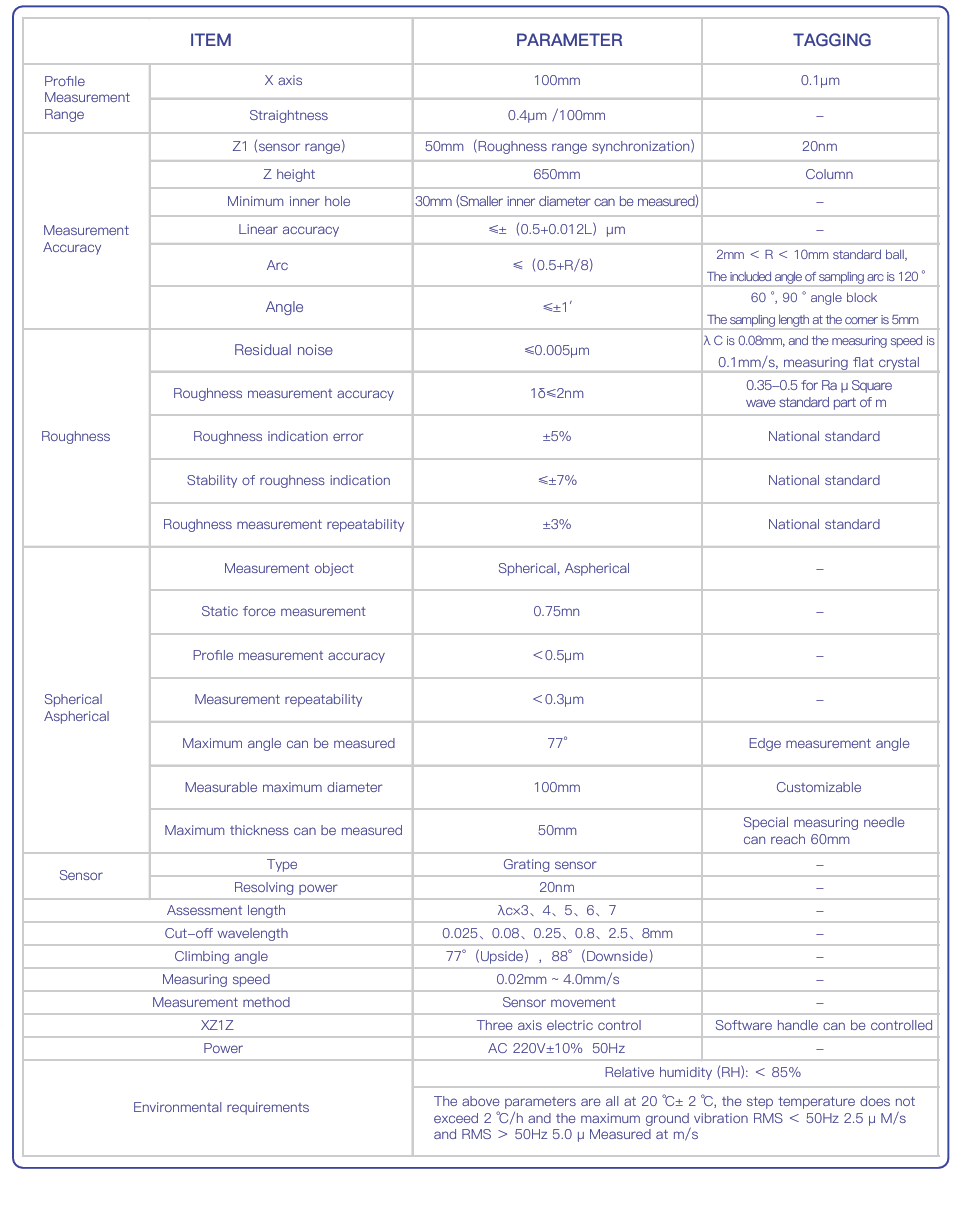

TECHNICAL PARAMETER
