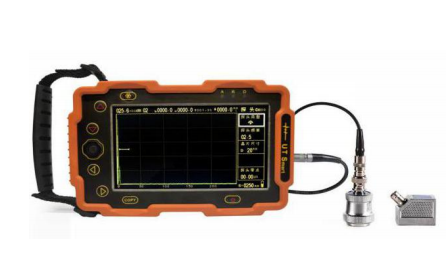

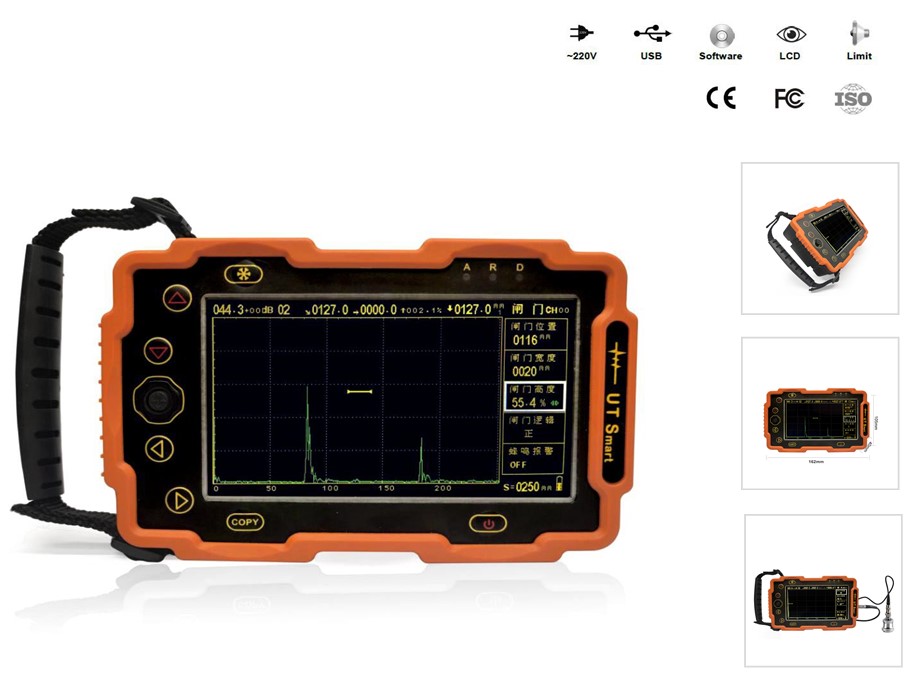

Mini Smart Ultrasonic Flaw Detector TLS530

1.Functions & Features

●  Ultra mini size & weight: design for Field work, Aerial work

●  Probe automatic calibration

●  Automatically form DAC, AVG (DGS) curves by using standard test block

●  Display the echo parameters (depth D, level P, the distance S, the amplitude H)

●  Peak memory: Search the highest wave of defects; Record the max. value of defects

●  Defect location: display of the defect's horizontal, depth (vertical), and sound path position

●  Defect qualitation : Echo envelope, convenient for manual judge

●  Weld diagram: directly display the defect location, the bevel form and sound velocity direction

●  Built-in Standards: Freely set flaw detection standards of various industries

●  Working mode: straight probe, Angle probe, dual crystal probe, penetrating flaw detection

●  Storage: 300 pieces of A-scan images and data

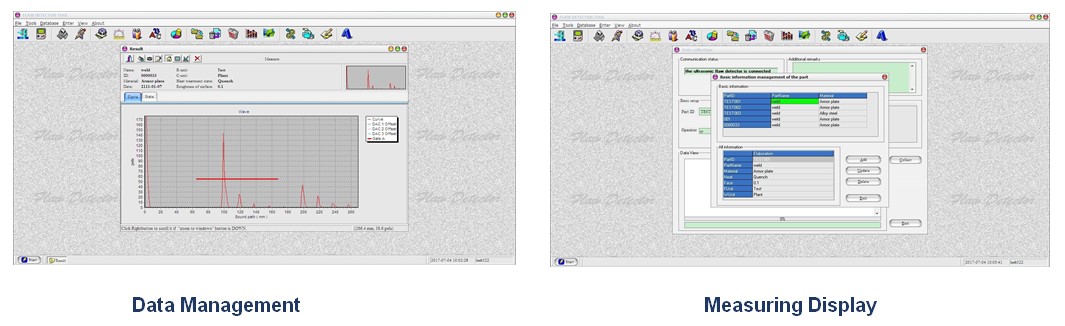

●  PC software is available for data analysis, management and reports printing

2.Application

●  Quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as welding cracks, and etc. It Widely used in Steel Structure Industry, electric power, petrochemical, boiler and pressure vessel, railway transportation, automobiles, machinery, and other fields.

3.Technical Parameters

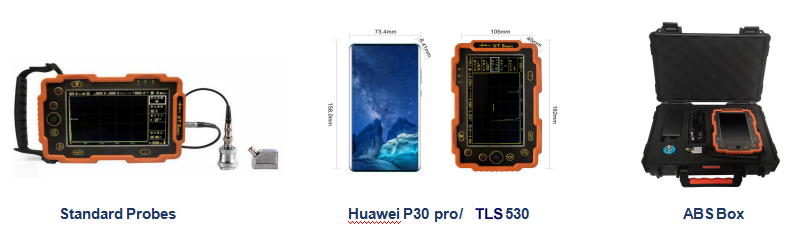

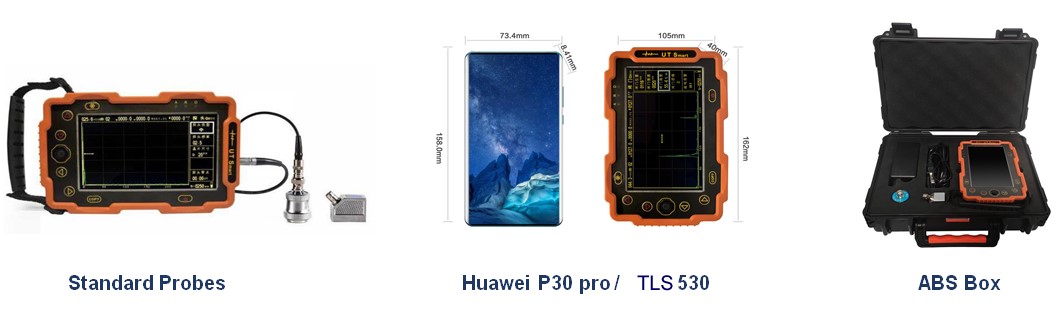

4.Pictures

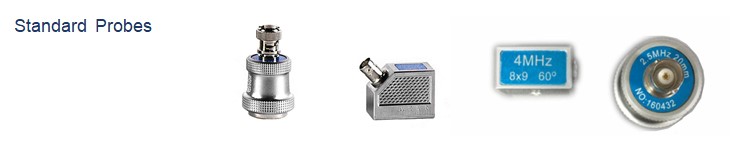

5.Standard Configuration

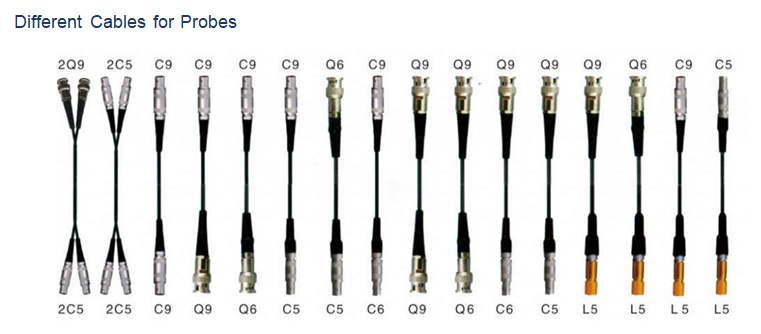

6.Accessories
