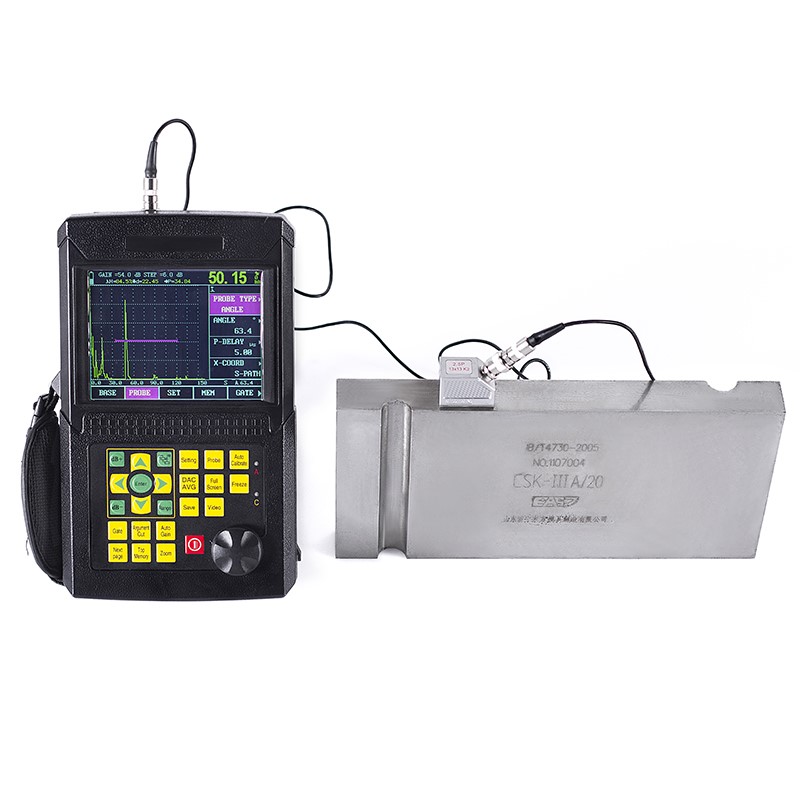

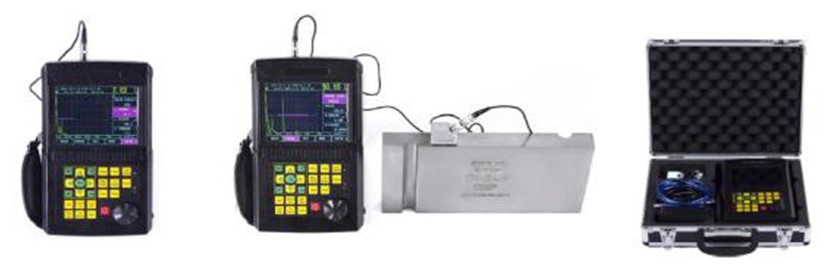

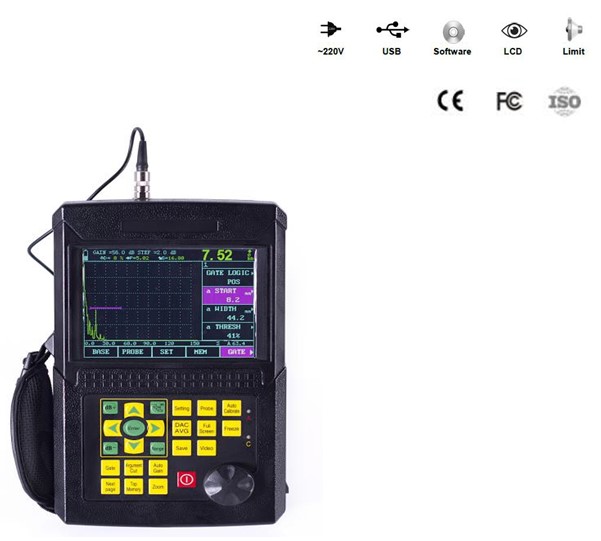

Ultrasonic Flaw Detector TLS 510/520/521/522

1.Functions & Features

● Probe automatic calibration

● DAC and AVG are automatically formed, and can be corrected and compensated

● Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)

● Functions such as Auto-gain and peak memory improve detection efficiency

● Automatically calculate the φ value equivalent defects

● 13 built-in testing standards are available

● Storage: 980 pieces of A-scan images and data

● Power supply: rechargeable Li-ion battery, standby time more than 15hours

● The width and intensity of launch pulse are adjustable

●With the durable shell ,oil-proof, water-proof and dust-proof

● PC software is available for data analysis, management and reports printing.

2.Application

Application for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as cracks, welds, blowhole, etc. It Widely used in electric power, petrochemical, boiler and pressure vessel, steel, military, aerospace, railway transportation, automobiles, machinery, and other fields.

3.Technical Parameters

Model	TLS510	TLS520	TLS521	TLS522
Operating Frequency	0.5MHz～15MHz		0.5MHz～20MHz
Scan Range(mm)	0-6000mm		0-10000mm
Velocity Range（m/s）	1000～15000	100～18000	100～20000
Vertical linearity error	≤3%		≤2%
Dynamic Range	≥32dB		≥35dB
Horizontal linearity error	≤0.2%		≤0.1%
Testing sensitivity	≥62dB (Depth 200mm, Φ2 flat bottom hole)		≥65dB (Depth 200mm, Φ2 flat bottom hole)
Measuring channel	50		100
Storage	500		980
TCG curve	○	○	● ●
B Scan	○	○	○ ●
PC Connection	●
Video	○	○	○ ●
Gain Range(dB)	0~110	0~120	0~130

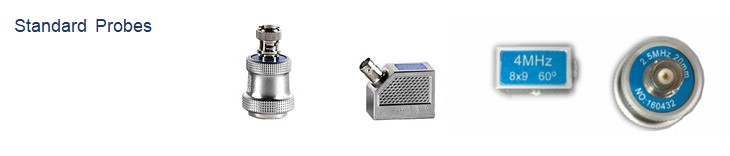

Standard Probes	Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9 Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5
Dimension	240×160×40mm
Weight	1.2kg

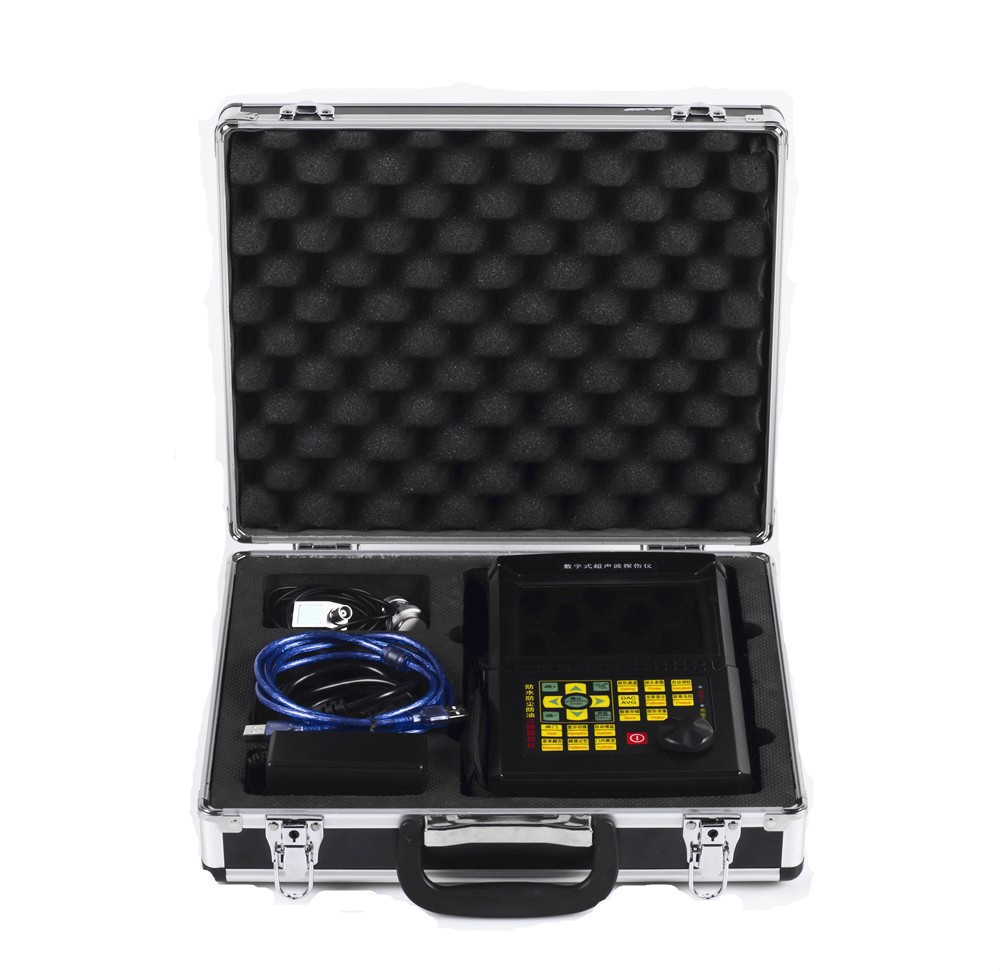

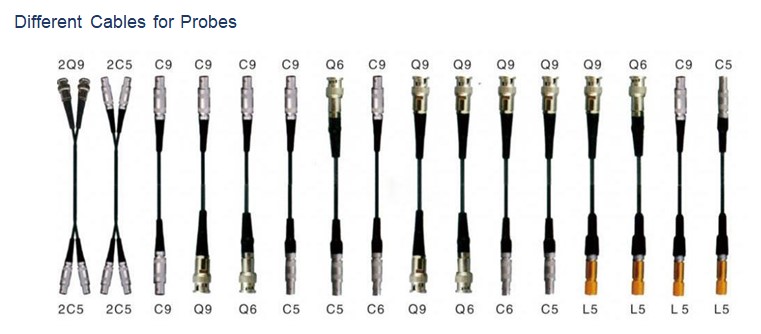

Optional Accessories	Optional probes, Cables, Calibration blocks, Coupling agent
