TLS620A Magnetic Flaw Detector mase in China

Time：2025-02-21Views：580

Magnetic Flaw Detector TLS620A

1.Functions & Features

●Power supply: AC 220V，50-60Hz (Available 110V / 240V and etc.)

● New design with more durable shell, long service life in high temperature and complicated environment

● Available built-in UV light、built-in white light

● Small volume, light weight, large lifting force, and adaptable joint.

● Detecting of the weld bead, steel pipe, pressure vessel, and the parts with complicated figure.

● This model has applied for national patent technology.

2.Application

● Widely used in Oil field, Boat making, Car making, Coal mine, Machine, Medicine, Airplane making and internal combustion engine parts etc.

● Fit to the detecting for the surface defecting caused by Forge, Quenching,Welding, Fatigue etc.

3.Technical Parameters

Model	TLS620A
Power supply	Alternating Current & Direct Current
Input votage	AC 220V，50-60Hz (Optional: 110V, 240V)
Working power	AC 2.2A, DC 1.5A
Magnetization pole distance	0-220mm
Lift weight	> 7KG(AC), >22.2KG(DC)
Work period	5 seconds on -5 seconds off
Temperature	（-10 - 50）℃
Overall dimension	140 * 230 * 45mm
Net Weight	3.0Kg (Yoke and DC power supply)

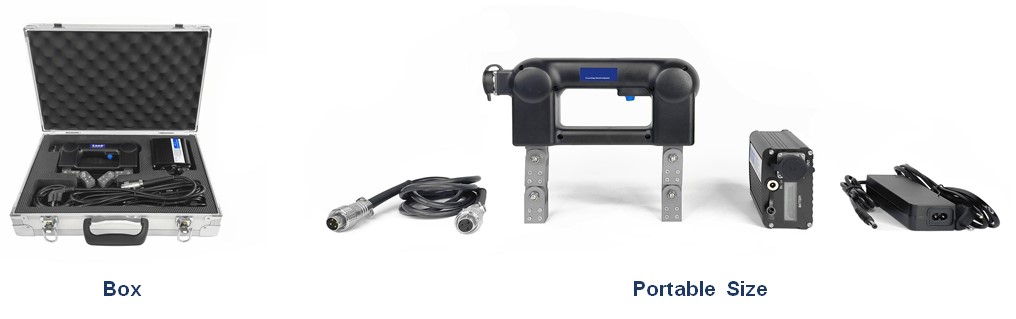

Standard Delivery	Main machine、Input electric cable、DC Magnetized power supply、 Charger 、Box、Manual、Certificate
Optional Accessories	Built-in UV light、Built-in white light、various types of Probes

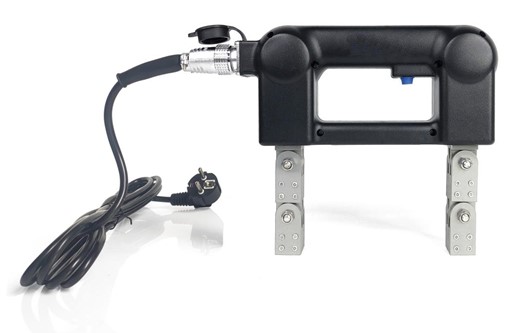

4.Pictures

5.Optional Accessories
