TLS620 Magnetic Flaw Detector from China

Time：2025-02-21Views：471

Surface Roughness Tester TLS462

1.Functions & Features

●Power supply: AC 220V，50-60Hz

● New design with more durable shell, long service life in high temperature and complicated environment

● Available built-in UV light、built-in white light

● Small volume, light weight, large lifting force, and adaptable joint.

● Detecting of the weld bead, steel pipe, pressure vessel, and the parts with complicated figure.

● This model has applied for national patent technology

2.Application

●Widely used in Oil field, Boat making, Car making, Coal mine, Machine, Medicine, Airplane making and internal combustion engine parts etc.

● Fit to the detecting for the surface defecting caused by Forge, Quenching,Welding, Fatigue etc.

3.Technical Parameters

Model	TLS620
Power supply	Alternating Current
Input votage	AC 220V 50-60Hz (Optional: 110V, 240V)
Lift weight	≥ 7.0KG
Working power	AC 2.2A
Magnetization pole distance	0-220mm
Work period	5 seconds on -5 seconds off
Temperature	（-10 - 50）℃
Overall dimension	140 * 230 * 45mm
Net Weight	2.4kg
Standard Delivery	Main machine、Input electric cable、Box、Manual、Certificate
Optional Accessories	Built-in UV light、Built-in white light、various types of Probes

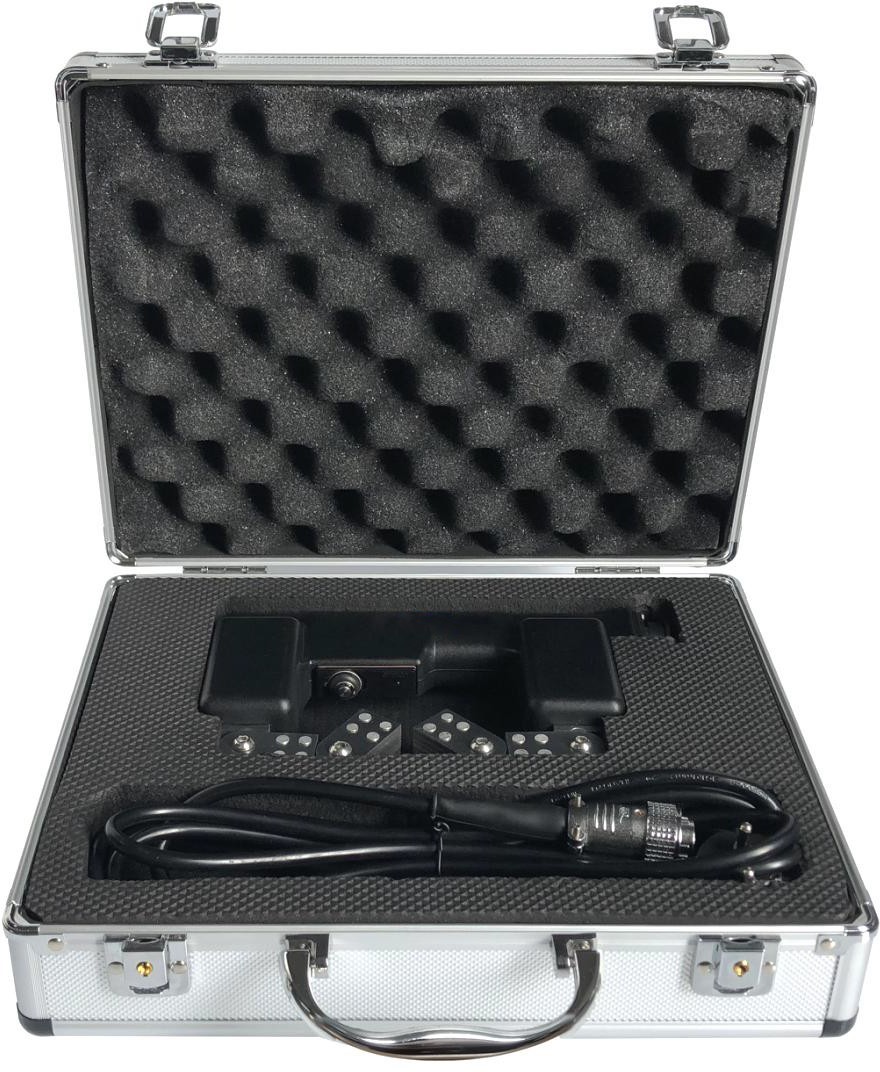

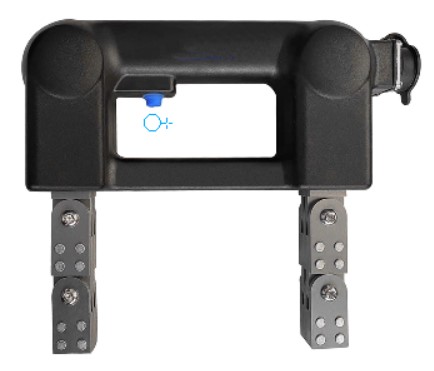

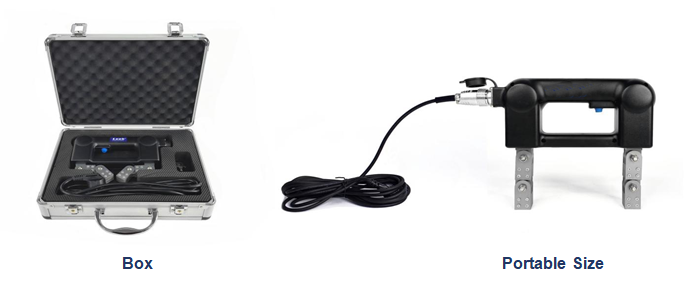

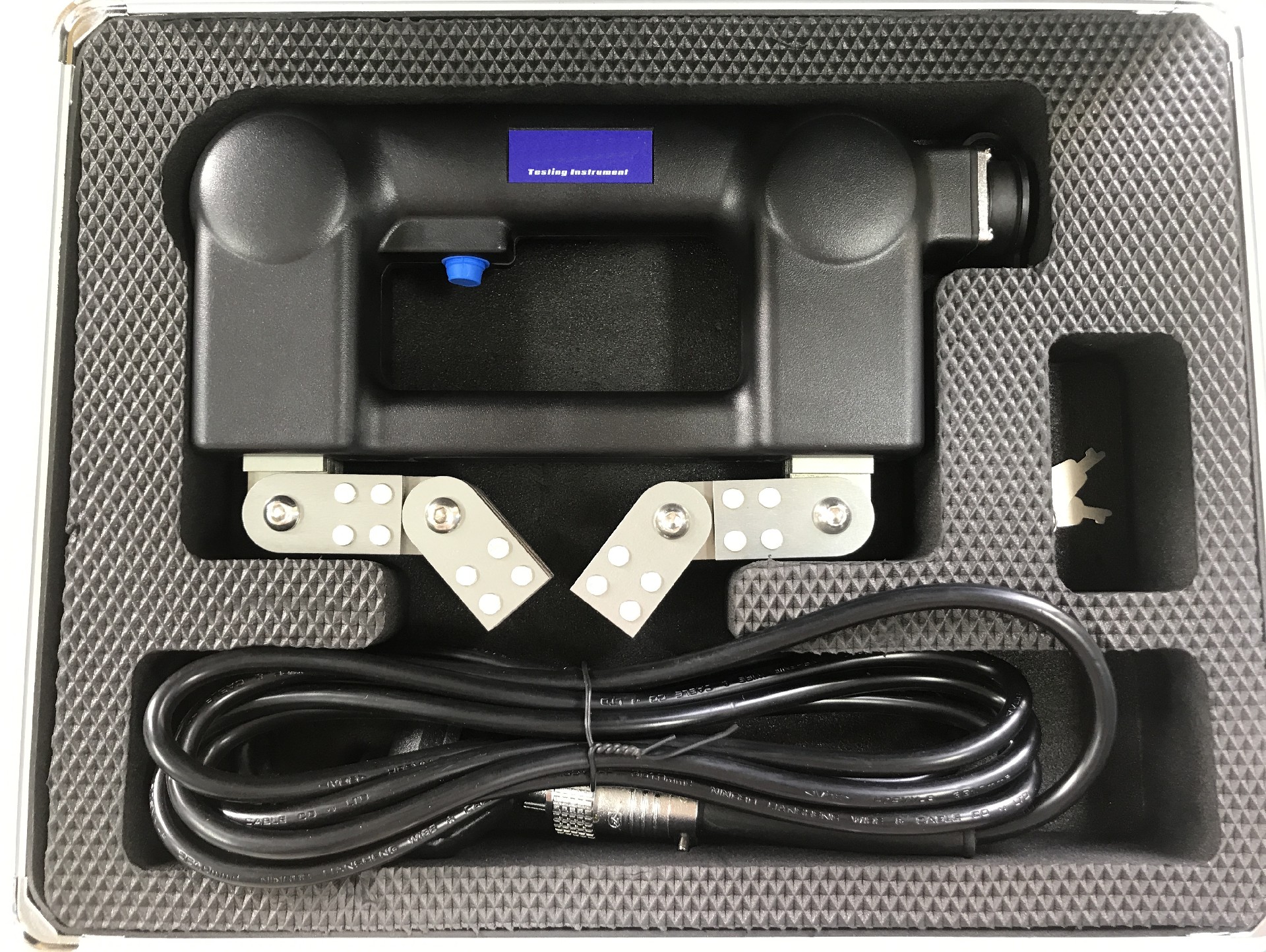

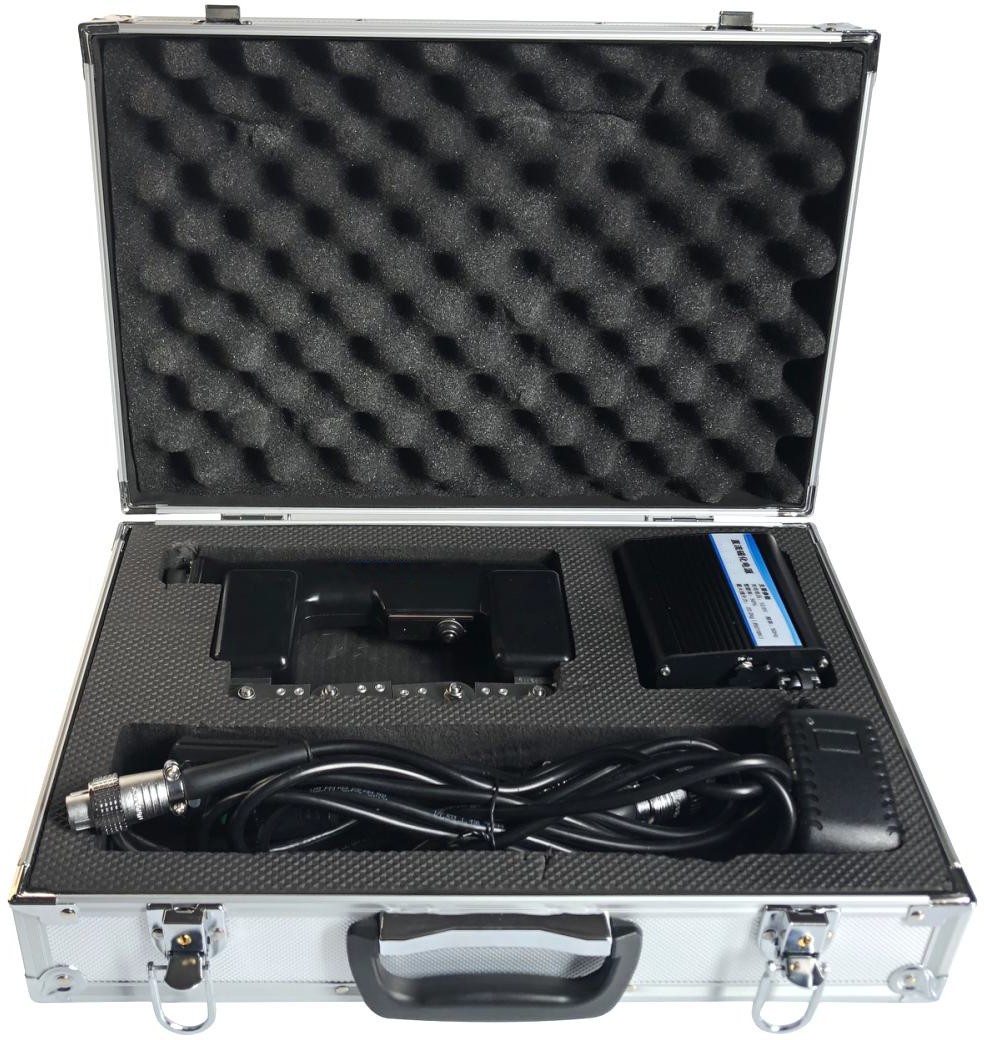

4.Pictures

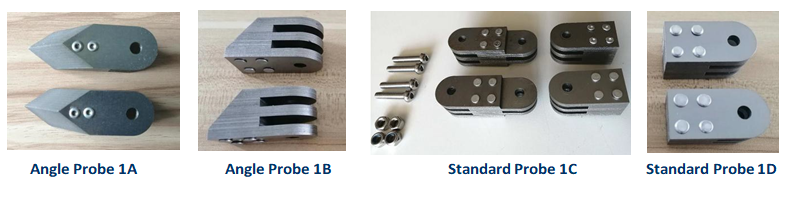

5.Optional Accessories
