HVS-1000Z Micro Vickers Hardnes Tester (Touch Screen) From China

Time：2025-02-21Views：428

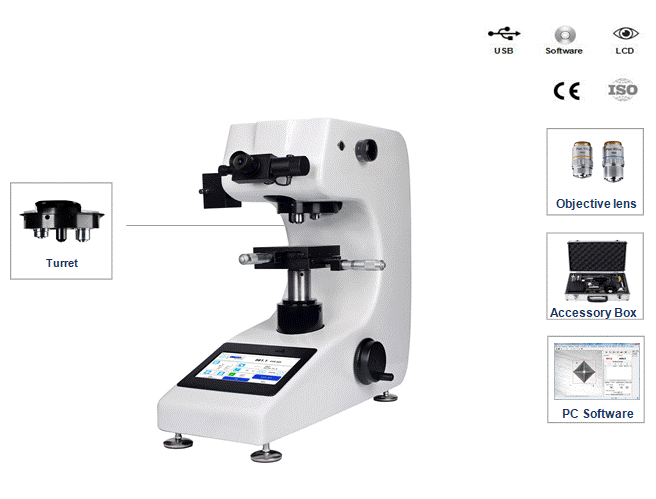

Micro Vickers Hardnes Tester HVS-1000Z (Touch Screen)

1.Functions & Features

● Touch Screen, 7-inch full color display, multi-function menu

● Automatic loading & unloading, Automatic turret function, easy operation

● High-definition optical system, adjustable brightness

● Indentation corner length D1 and D2 automatically calculate and input

● Hardness scale conversion function: Rockwell, Brinell, Knoop

● With 20 built-in standards for hardness scales ( ASTM, ISO, GB)

● Users can output testing data in Excel format by the USB port directly, without PC

● PC communication: PC is able to control the test and turret of machine by software

● Optional: Knoop accessories, high-definition CCD camera and software

● Meet or exceed ISO, ASTM and JJS standards

2.Application

●Surface coating, steel, non-ferrous metals, ceramics, alloys, etc.

●Heat treatment, carbonization, quenched hardened layer, nitrided layer

●Small and thin parts

3.Technical Parameters

Model	HVS-1000Z (Touch Screen)
Test force	10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N) 、300gf (2.94N)、500gf(4.9N)、1000gf (9.8N)
Min measuring unit	0.03125μm
Data output	Digital LCD screen display
Max Height of Specimen	90mm
Distance of Indenter to outer wall	120mm
X-Y Testing table	Dimension: 100100mm Max mobile：2525mm
Conversion Scale	HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、 HR45N、HR15T、HR30T、HR45T
Data output	USB port, RS232, PC software
Built-in Standards	20 standards for hardness scale ( ASTM, ISO, GB)
method of testing force applied	Automatic（Loading, Dwell, Unloading）
Test microscope magnification	400X(Measuring)，100X（observation）
Duration time	5~60s (Adjustable)
Power supply	AC220V+5%，50-60Hz
Overall Dimension	405290480mm
Net weight	About 40Kg

4.Standard Accessories
