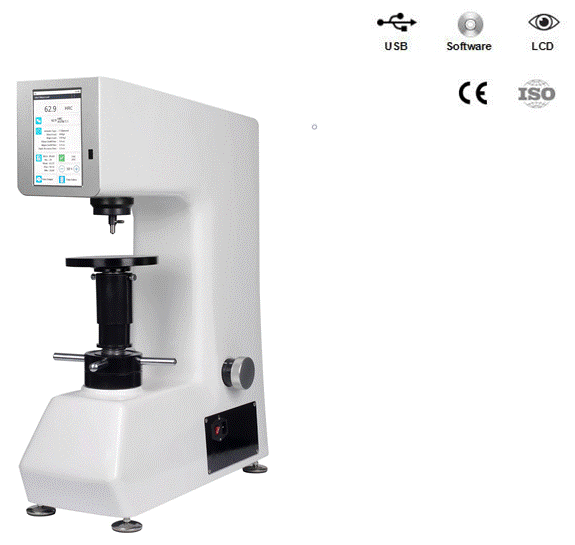

Digital Rockwell Hardness Tester ( Touch Screen)
1.Functions & Features

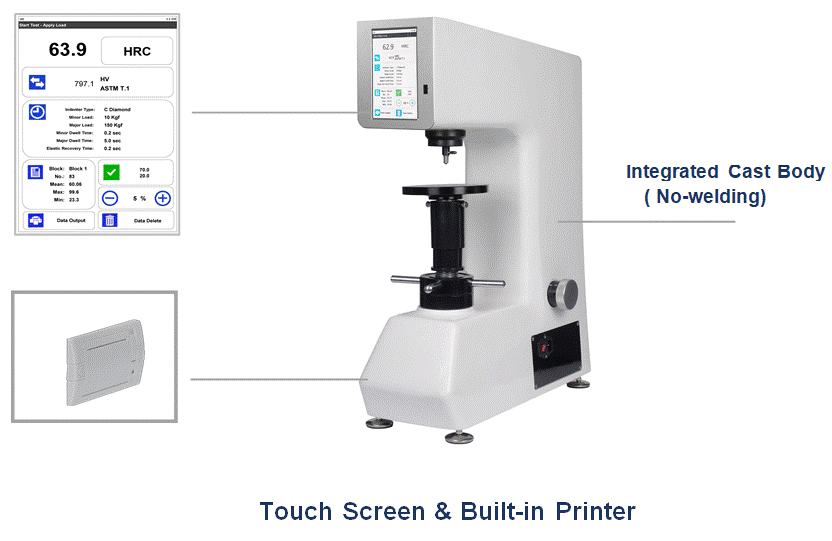

● Touch Screen, 7" full color OLED display
● Multi-function system for easy operation; multi-langauges available
● Automatic testing process without manual operating error
● With various Rockwell Scales for testing and automatic statistic
● Built-in standards, convert to Vickers, Brinell based on different standards
● Shape correction settings for curved surface
● USB port for export data directly; RS232 for PC connection
● Meets or exceeds GB/T230.2, ISO 6508-2, ASTM E18 standards
● Optional PC Software for data managment and report
● Optional Plastic Rockwell Accessories
2.Application
● Industrial production, Inspection of product quality on processing technology.
● Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
3.Technical Parameters
Model | HRS-150 |
Indication of Hardness Value | Large LCD screen display |
Data output | Built-in Printer, USB port, RS232 |
Duration time | 0-60s |
Carried Standard | GB/T230.2、ISO6508-2、ASTM E-18 |
Preliminary Testing force | 10kgf(98.07N) |
Testing force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
Rockwell Scale | HRA HRB HRC HRD HRE HRF HRG HRH HRK HRL HRM HRP HRR HRS HRV |
Hardness measuring range | HRA:20-95 HRB:10-100 HRC:20-70 HRD:40-77 |
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 | |
HRL:50-115 HRM:50-115 HRR:50-115 | |
Max Height of Specimen | 170mm |
Distance of Indenter to outer wall | 165mm |
Power supply | AC220V+5%，50-60Hz |
Overall Dimension (mm) | 520*240*700 |
Net weight | About 80Kg |

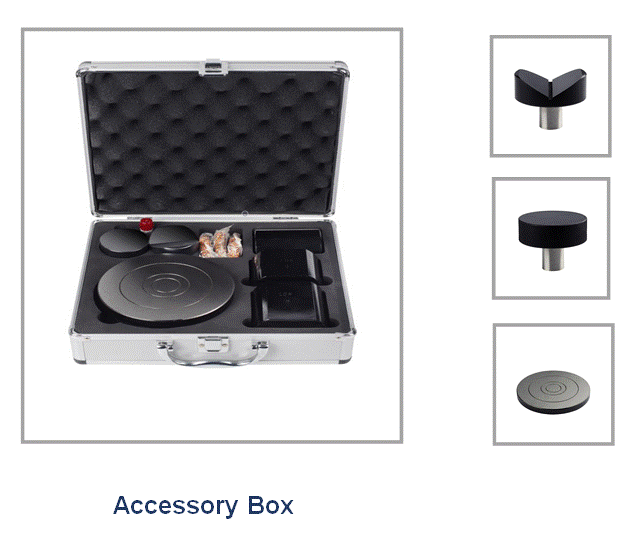

4.Standard Accessories
Name | Quantity | Name | Quantity |
Diamond Rockwell Indenter | 1 | 1.5875mm Ball Indenter | 1 |

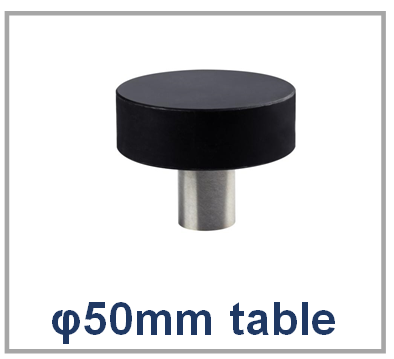

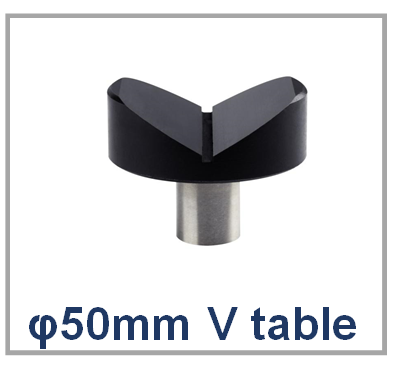

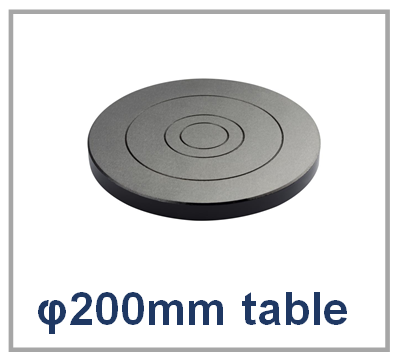

Hardness block（HRC , HRB 1） | 3 | Large, Medium, “V” shaped Testing Table | 3 |
Weights（A、B、C） | 3 | Plastic Dustproof cover | 1 |
Paper for printing | 1 | RS232 Cable | 1 |
Operation Manual | 1 | Product Certificate | 1 |
5.Optional Accessories of Plastic Rockwell
Name | Quantity | Name | Quantity |
Rockwell Ball Indenter | 1 set ( 3pcs) | Hardness block（HRE,HRL,HRM,HRR) | 1 set ( 4pcs) |
6.Tolerance and Repeatability of plastic Rockwell
Scale | Hardness Block Range | Tolerance | Repeatability(≦) |
HRE | 70~94HRE | ±2.0HRE | 2.5HRE |
HRL | 100~120HRL | ±1.2HRL | 1.5HRL |
HRM | 85~110HRM | ±1.5HRM | 2.0HRM |
HRR | 114~125HRR | ±1.2HRR | 1.5HRR |
7.Application of Hardness Scale, Indenter, Testing force
Scale | Ball Indenter (diameter) | Initial Force（N） | Testing Force（N） |
HRE | φ3.175mm (1/8 inch) |
98.07 (10kg) | 980.7（100kg） |
HRL | φ6.35mm (1/4 inch) | 588.4（60kg） | |
HRM | φ6.35mm (1/4 inch) | 980.7（100kg） | |
HRR | φ12.7mm (1/2inch) | 588.4（60kg） |
8.Pictures
Pictures
