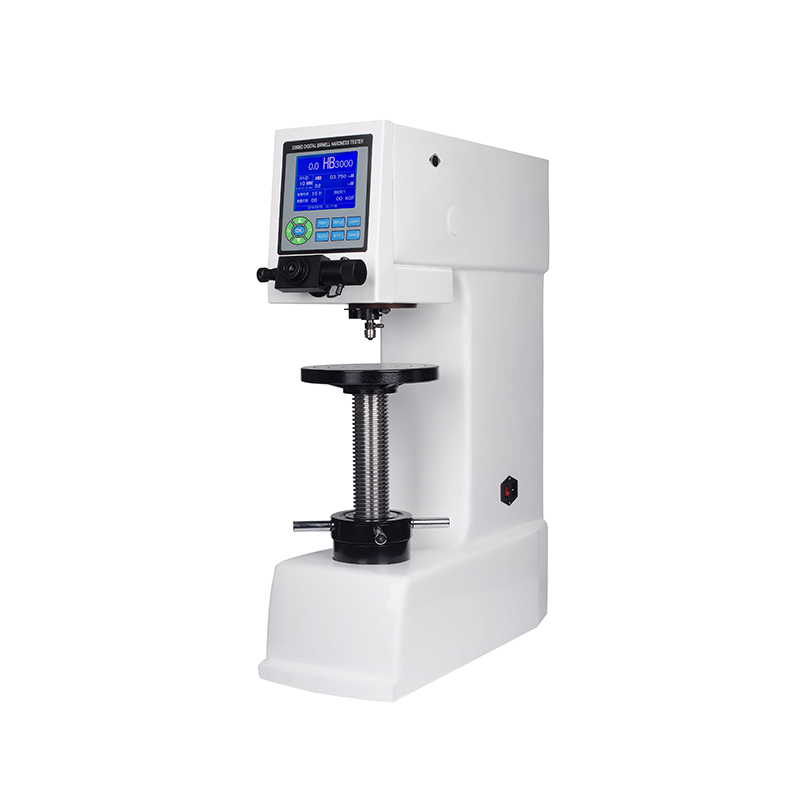

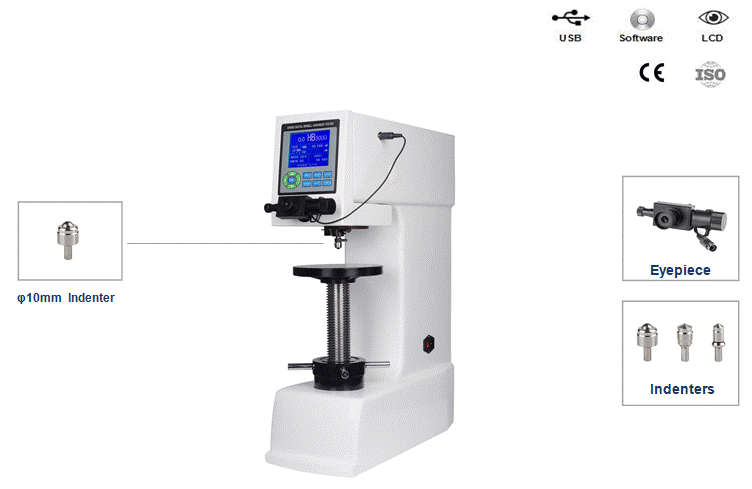

HB-3000D Digital Brinell Hardness Tester
1.Functions & Features
● Closed-loop sensor, electronic control system.
● With 10-level test force.
● Keyboard to select test method, and convert between various of hardness scales.
● The data of operation process and test result can be displayed on the LCD large screen.
● The data of the test result can be output by the printer.
● With built-in printer. Manual Turret.
● Optional high-definition CCD camera and software for data management and report
2.Application Areas
Widly used in Industries: Metallurgy, Metrology, Building materials, Research Institutes, Hardening shops, Automotive, Railway, Energy, Steel, Aviation, Roller plants, Tube rolling mills, Foundries.
3.Application Materials
Cast Iron, Non-ferrous Metals and Alloys, various annealed/ quenched/ tempered Steels, especially for softe Metals such as pure Aluminum, Lead, Tin and so on.
4.Technical Parameters
Model | HB-3000D |
Measuring Range | 8~650HBW |
Brinell Scale | HBW2.5/62.5、 HBW2.5/187.5、HBW5/62.5、 HBW5/125、 HBW5/250、 HBW5/750、 HBW10/100、 HBW10/250、 HBW10/500、 HBW10/1000、 HBW10/1500、 HBW10/3000 |
Testing Force | 62.5kgf(612.9N)、 100kgf (980.7N)、 125kgf (1226N)、 187.5kgf (1839N)、 250kgf (2452N)、 500kgf (4903N)、 750kgf (7355N)、 1000kgf (9807N)、 1500kgf (14710N)、 3000kgf (29420N) |
Max Height of Specimen | 220mm |
Min Measuring Unit | 0.625um |
Duration time | 5~60s |

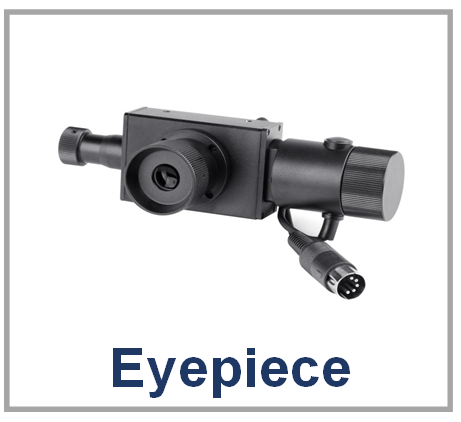

Magnification of Microscope | 20X |
Carried Standard | ISO 6506.2, GB/T231.2，JJG150 |
Distance of Indenter to outer wall | 145mm |
Power supply | AC220+5%,50~60Hz |
Overall Dimension (mm) | 550*250*780mm |
Main body Weight | About 150kg |
5.Standard Accessories
Name | Quantity | Name | Quantity |
Main Unit | 1 | Accessory Case | 1 |

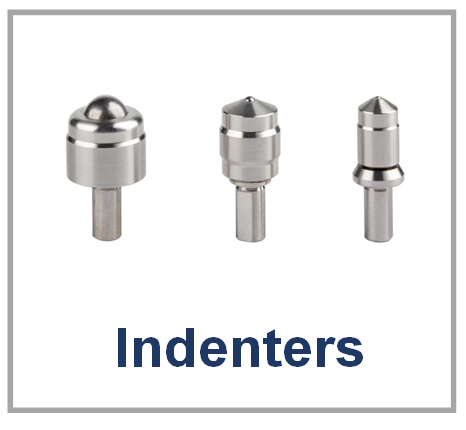

Measurement microscope (20X) | 1 | Diameter φ2.5、φ5、φ10 mm Steel Ball Indenter | 3 |
HBW/3000/10, HBW/1000/10, HBW/187.5/2.5 | 3 | Large, Small, “V” shaped Testing Table | 3 |
Diameter fastening screw | 1 | 2A Fuse | 1 |
Power Cable | 1 | Dust proof covering | 1 |
Paper for printer | 1 | Manual ,Certificate, Warranty card | 1 |
