TK-60 Highly cost-effective portable spectrophotometer

n  Ultra-high repeatability accuracy：dE*ab≤0.02

n  Horizontal compression measurement, physical positioning observation window

n  More than 30 measurement parameters and nearly 40 evaluation light sources

n  The software supports WeChat applet, Android, Apple, Hongmeng,

mobile APP, etc., and supports data synchronization

1、Product features

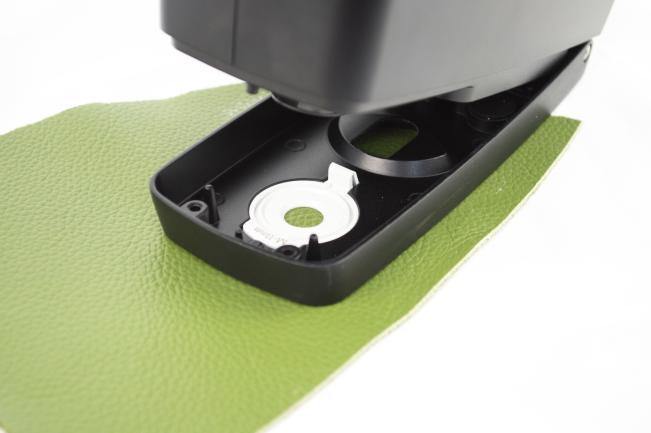

n  Horizontal compression measurement, physical positioning observation window

lThe TK-60 spectrophotometer adopts a horizontal design with a low center of gravity, which can be

stableMeasure the surface being measured. During themeasurement process, you can follow the observation

windowCheck the measurement position at all times toavoid measurement position errors.

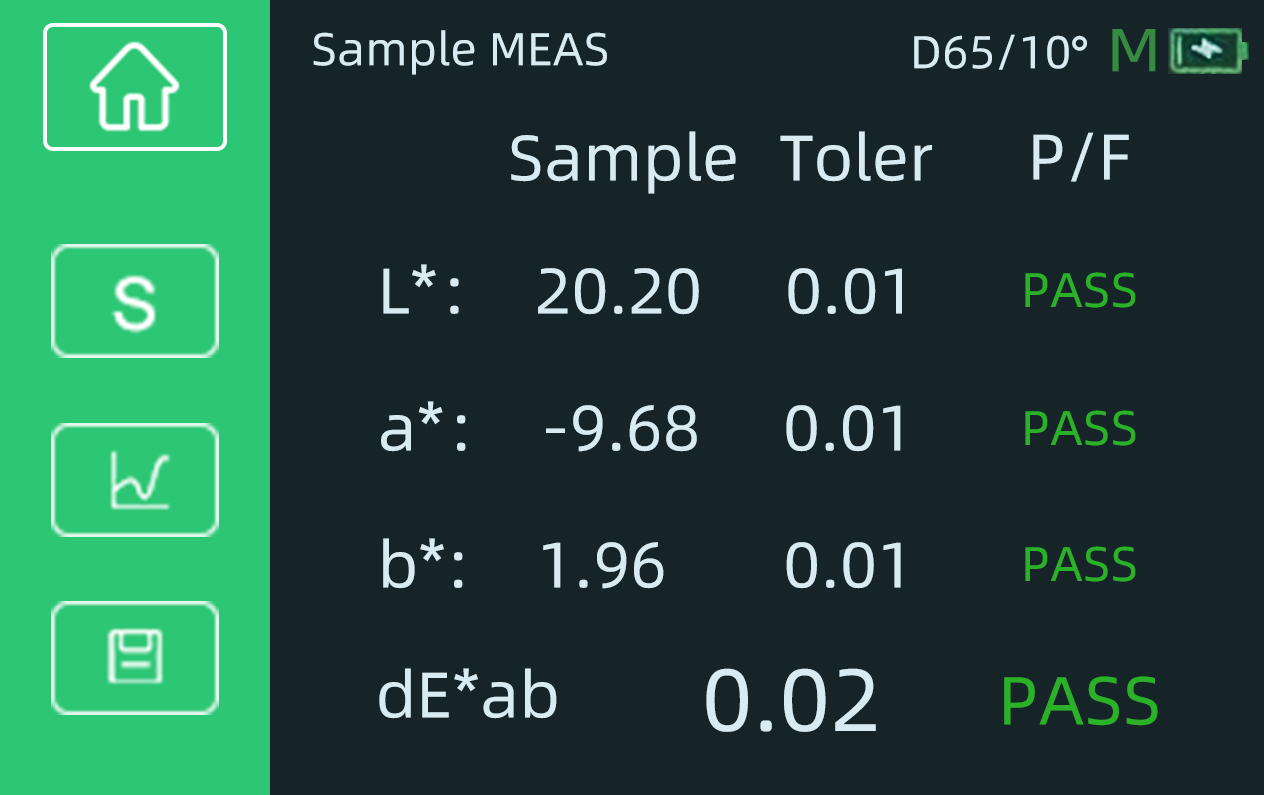

n  Ultra-high repeatability accuracy：dE*ab≤0.02

lRepeatability accuracy is the most important indicator to describe the performance of a spectrophotometer.

The TK-60 spectrophotometer adoptshigh-precision nanometer spectroscopic devices, which enables the repeatability

accuracy of the instrument to reach a level of dE*ab≤0.02 that is difficult to match with similar products.

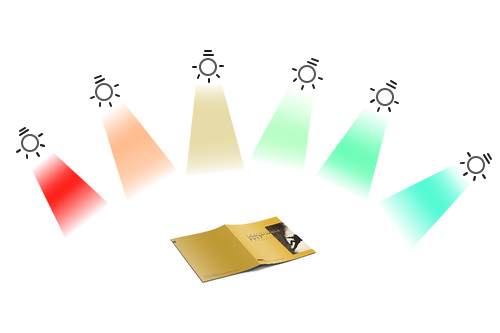

n  More than 30 measurement parameters and nearly 40 evaluation light sources

l TK-60 spectrophotometers provide spectralreflectance, CIE-Lab, CIE-LCh,ΔE*ab, covering power, whiteness, yellowness and other 30+ measurement indicators; A, B, C,There are nearly 40 evaluation light sources to choose from such as D50, D55, and D65, covering almost all industries All color measurement metrics and light source types included.

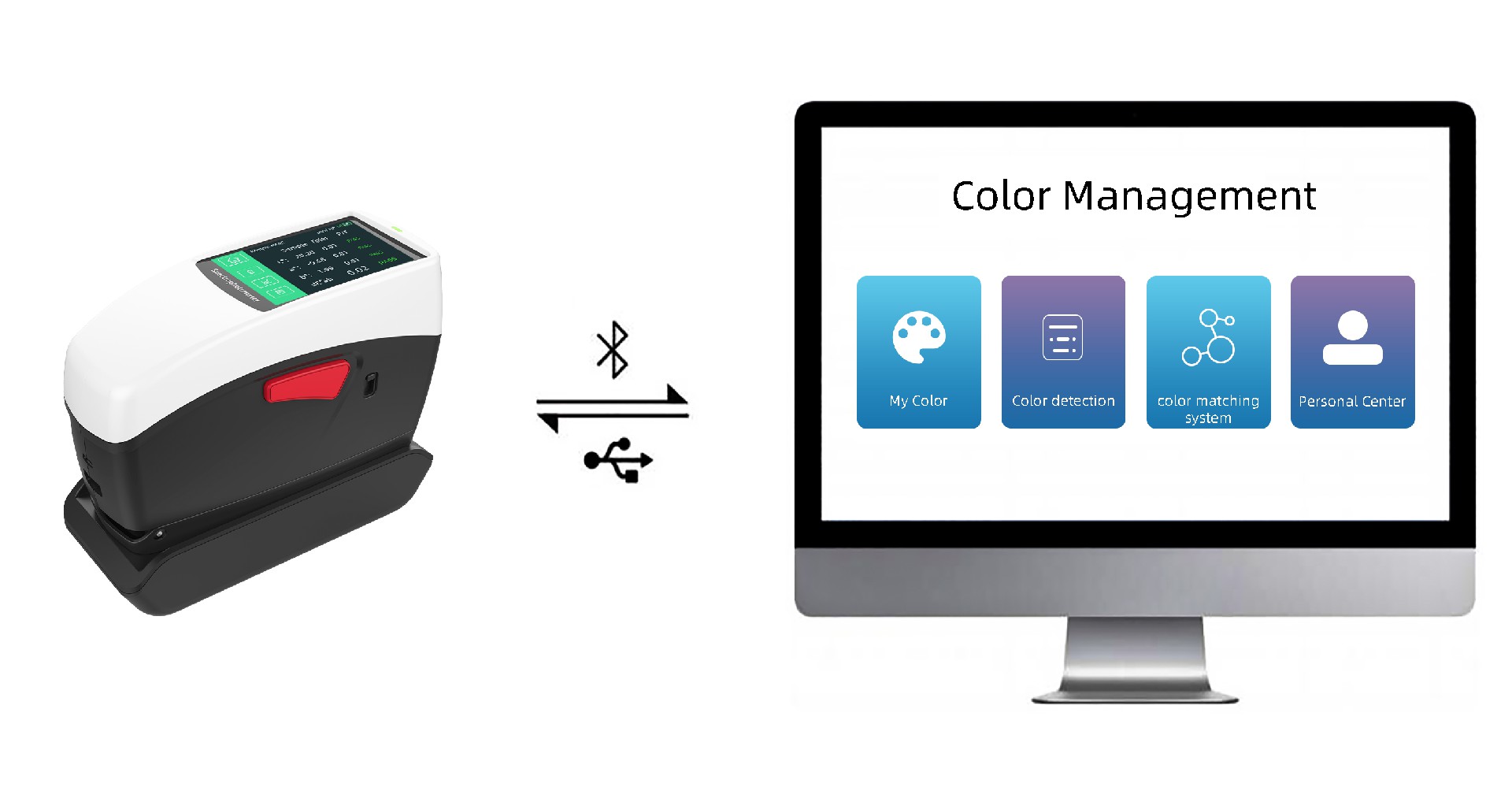

n  Support WeChat applet, Android, Apple, Hongmeng, mobile APP

lThe TK-60 spectrophotometer can be connected to various mobilephones through a variety of mobile programs.

lUsers no longer need to transmit the color values and physical objects ofsamples, but can easily transmit color data through WeChat.

lUsers can search for the closest color among multiple sets of color cards

lUsers can create a personal color database and enter color cardinformation for printing, coatings, textiles, etc. The created color librarycan be uploaded to the cloud for multi-device data sharing, makingcolor processing more convenient.

lEnterprise users can create and manage their own color cardinformation library and color formulas in the cloud, and share the information library and color formulas with their own users through unique invitation codes.

2. Product parameters
